XSONIC Airmar B175M (20°) (6ft - Boatbuilder)

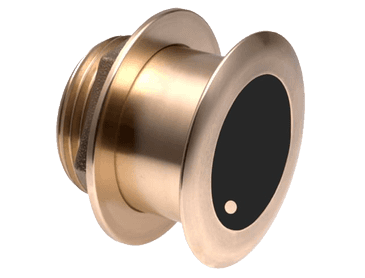

B175M (20°) - Bronze 1kW Medium-CHIRP Through Hull Depth/Temperature Transducer. 9pin connector and 1.8m (6ft) cable.

Medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1,500') and delivers ultra-clear target resolution.


The B175M transmits across the Medium Chirp frequency 85 to 135 kHz


Tilted Element™ transducers have the element fixed at a 20° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.



Fixed 20° tilted version for 16° to 24° hull deadrise

Details:

Depth and water-temperature sensor

1 kW with a maximum depth of 457 m (1,500')

Medium frequency: 85 to 135 kHz

16° to 11° beamwidth

50 kHz of total bandwidth from one transducer

Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation

Low-profile, thru-hull housing provides good resolution at speed when installed properly

Bronze housing for use on stepped, planing or displacement hull
