Navico

XSONIC Airmar B175H-W (0°)

$1,999.09 AUD
$2,199.00 AUD $1,999.09 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
This is a Sample Product Title
Was $200.00 Now $100.00

Warranty Details

All claims are subject to standard testing procedures by its authorised representatives. Should a battery be deemed defective due to a manufacturing fault and is within its applicable warranty period; it will be replaced with an equivalent battery free of charge. Proof of purchase is required. You bear all transportation costs to and from testing centres. The warranty period is not renewed or extended as a result of a repair or replacement. Warranty is not transferable and is only offered to the original end user of the product. Cease using the goods when a fault arises and contact the supplier or manufacturer immediately. Warranty does not cover discharged batteries or diminishing capacity due to battery age and depth of discharge. This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. All warranties are to go through the manufacturer. Click here for full warranty details

XSONIC Airmar B175H-W (0°)

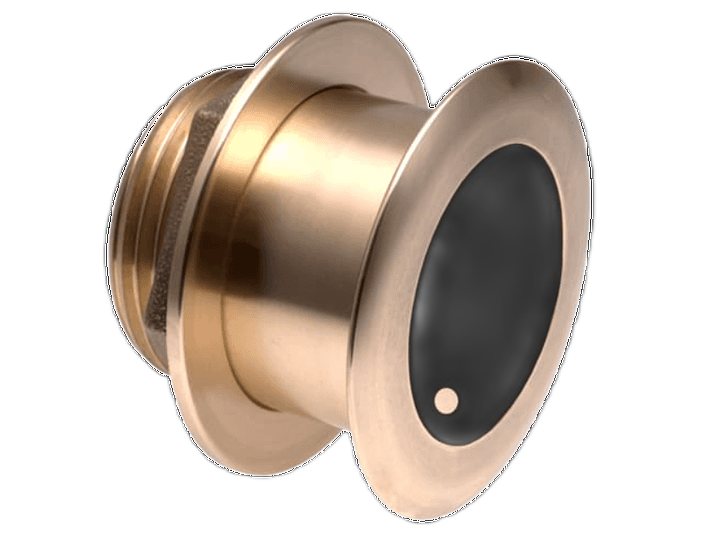

B175H-W (0°) - Bronze 1kW High-Wide-CHIRP Through Hull Depth/Temperature Transducer. 9pin connector and 10m (33ft) cable.

B175 H-W (0°) Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam, transducer options.


The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500’).


The B175HW transmits across the High Chirp frequency 150 to 250 kHz


Tilted Element™ transducers have the element fixed at 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise and orients the ceramic element horizontally to ensure maximum echo returns to the transducer.


-Fixed 0° tilted version for 0° to 7° hull deadrise

Details:

Depth and fast-response water-temperature sensor

1 kW with a maximum depth of 152 m (500')

High frequency: 150 to 250 kHz

Constant 25° beam

100 kHz of total bandwidth from one transducer

Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth

High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation

High wide beamwidth yields more coverage for detecting fish in the upper-water column

Low-profile, thru-hull housing provides good resolution at speed when installed properly

Bronze housing for use on stepped, planing or displacement hulls made of fiberglass or wood



Technical Specs

Download The Spec Sheet
