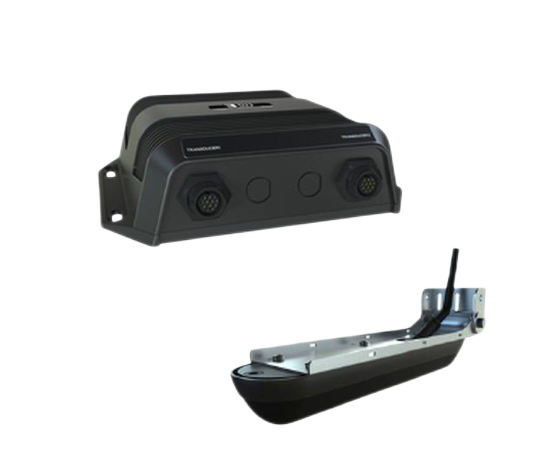

Simrad StructureScan 3D including module and transom-mount skimmer transducer
Simrad StructureScan 3D XDCR AND MODULE
The New Innovation From Simrad. StructureScan® 3D Offers A Simple New And Easy Way To View And Read StructureScan® High Definintion Imaging Data. Easy Operation And Amazing Results.
StructureScan® 3D allows anglers to see fish, structure and bottom contour in a stunning three-dimensional view. StructureScan® 3D imaging scans underwater terrain and fish-holding structure to create a high-resolution, 180-degree, three-dimensional view underneath your boat. With this unique, exceptional imaging view, anglers gain a better appreciation of where fish and structure are located in relation to their vessel.
Interpret The Bottom Line
- Eradicate confusion when fish are not on the banks and in shallow, visible cover. For the first time, StructureScan® 3D allows fisherman to effortlessly see all subsurface fish-holding structure and the fish as if they were fishing underwater. Now, a simple slow idle over a prospective fishing ground allows you to quickly master bottom contours, identify a vertical break or secondary point, and catch more fish in and close to the main deep water channel.
Easier Visualization
- 3D visualizations can be seen from any angle with ScanTrack™ pan-tilt-rotate control using on-screen touch motions and easy-to-use, customised, personalised, and preset viewing positions.
Technical/Environmental
| Product Width | 180 mm / 7.1 in |
| Product Height | 57 mm / 2.2 in |
| Product Weight | 0.9 kg / 2 lbs |
| Operating Temperature | -28° to 75° C (-20° to 167° F) |
| Water Resistance | 1PX-7 |
| Power Supply (Supply Voltage) | 12 or 24 V DC(max range 9 V to 32 V DC) |
Sonar Performance
StructureScan
| Output Power | 500w RMS |
| Max Side Range | 300ft each side |
| Max Down Range | 300 ft |
| Frequency | 455 & 800kHz |
CHIRP and Single Frequency Sonar
| Output Power | 250w RMS |
| Max Depth | 3,500 ft- Transdcuer Dependent |
| CHIRP Frequency | 40-60kHz, 85-145kHz, 130-210kHz |
| Narrow Band Frequency | 50 kHz/83kHz/200kHz |
Six Cable Connections
| Ethernet | 3 ports |
| Power | 4 Pin power connector |
