Simrad

NSO evo3S MFD 24" System Pack

$15,106.00 AUD
$19,680.55 AUD $15,106.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
This is a Sample Product Title
Was $200.00 Now $100.00

Warranty Details

Simrad Yachting / Navico warranty please visit: https://www.simrad-yachting.com/en-au/help--support/warranty-information/

NSO evo3S MFD 24" System Pack

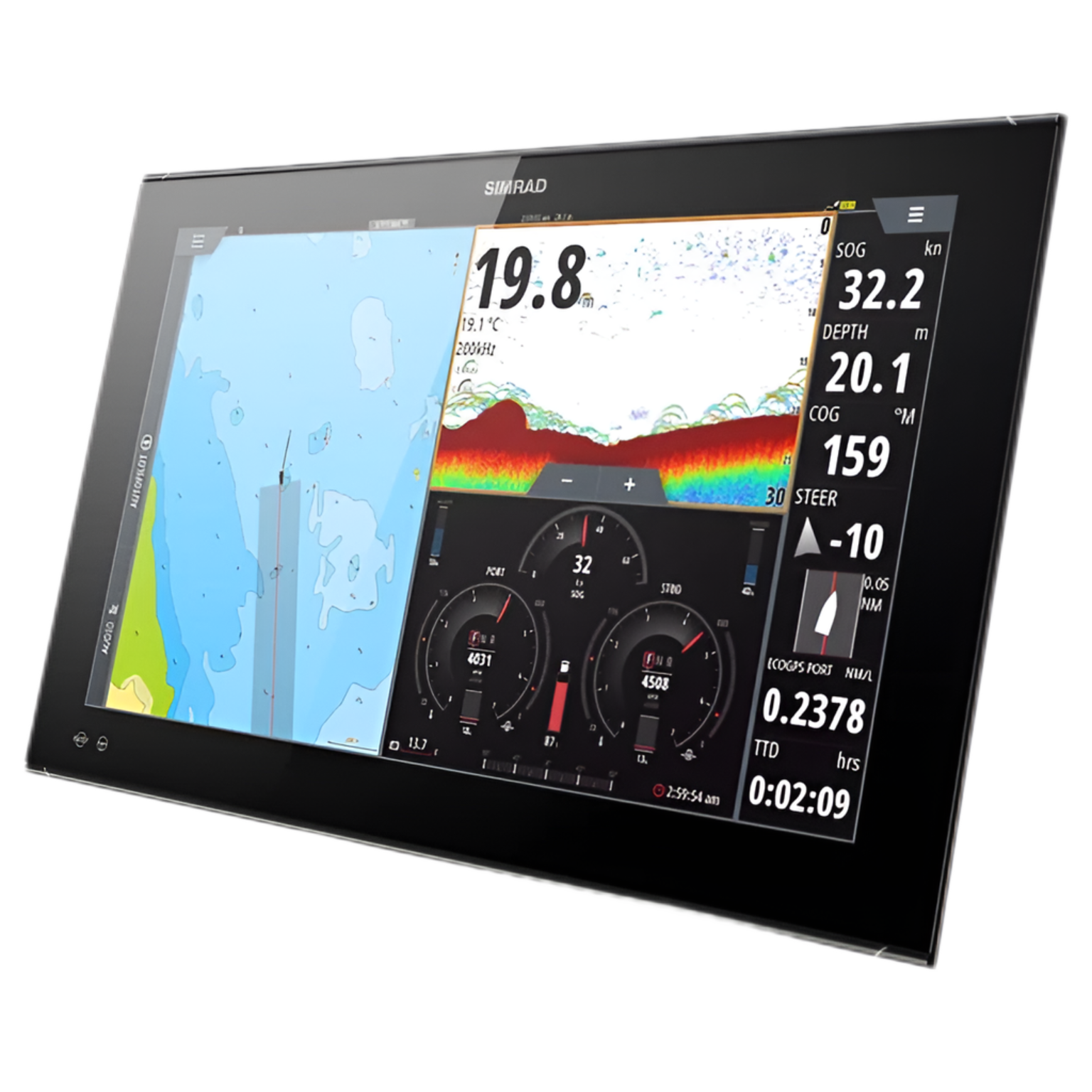

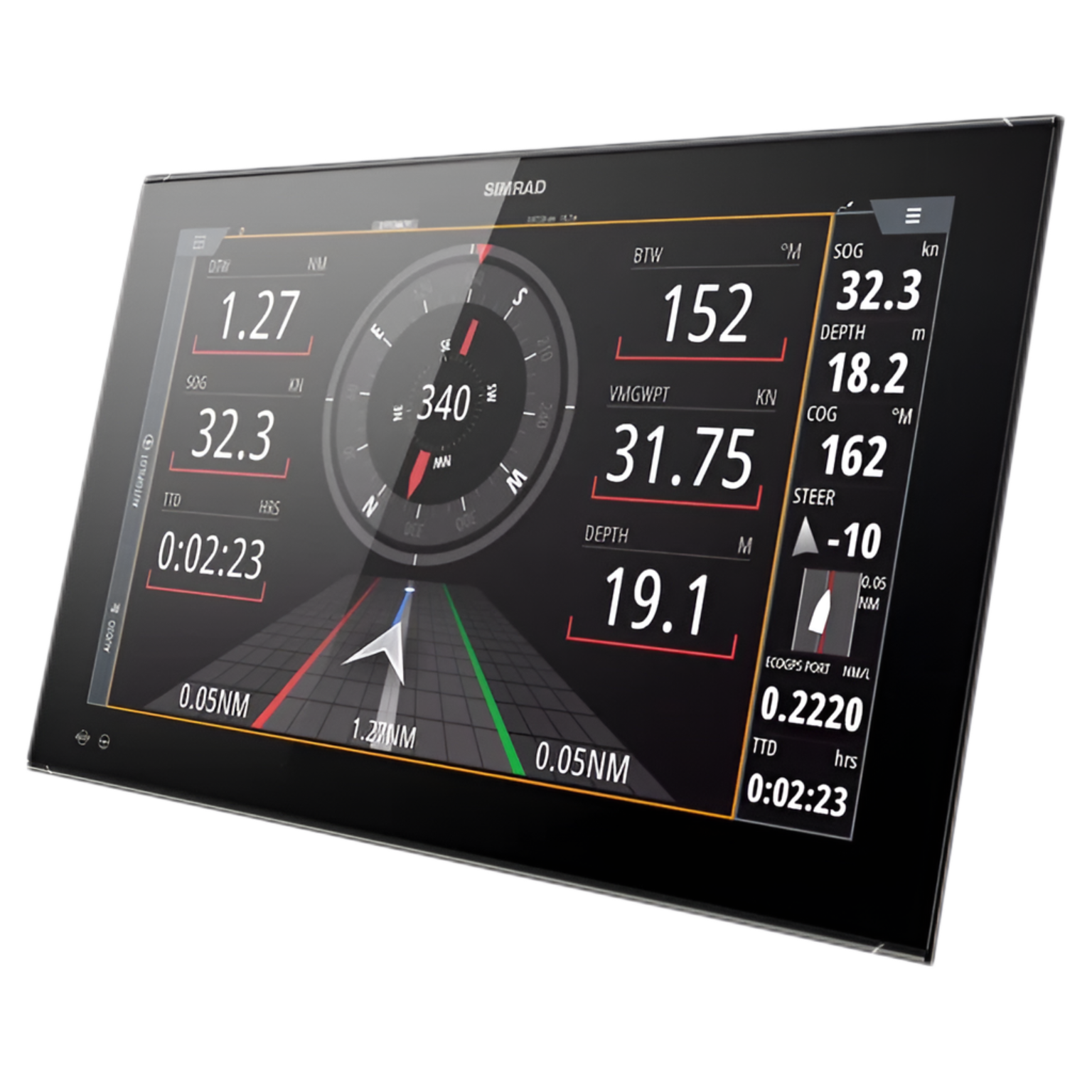

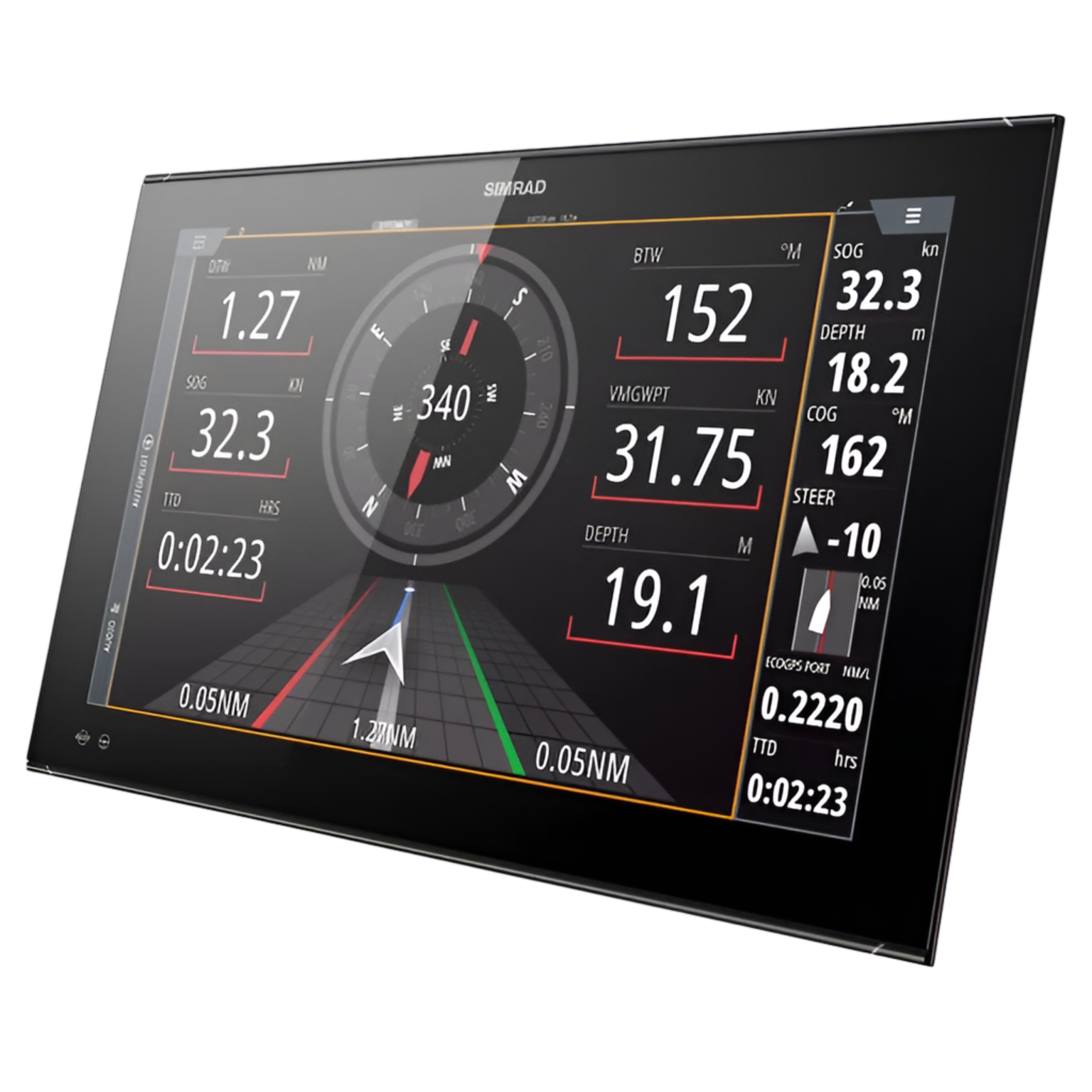

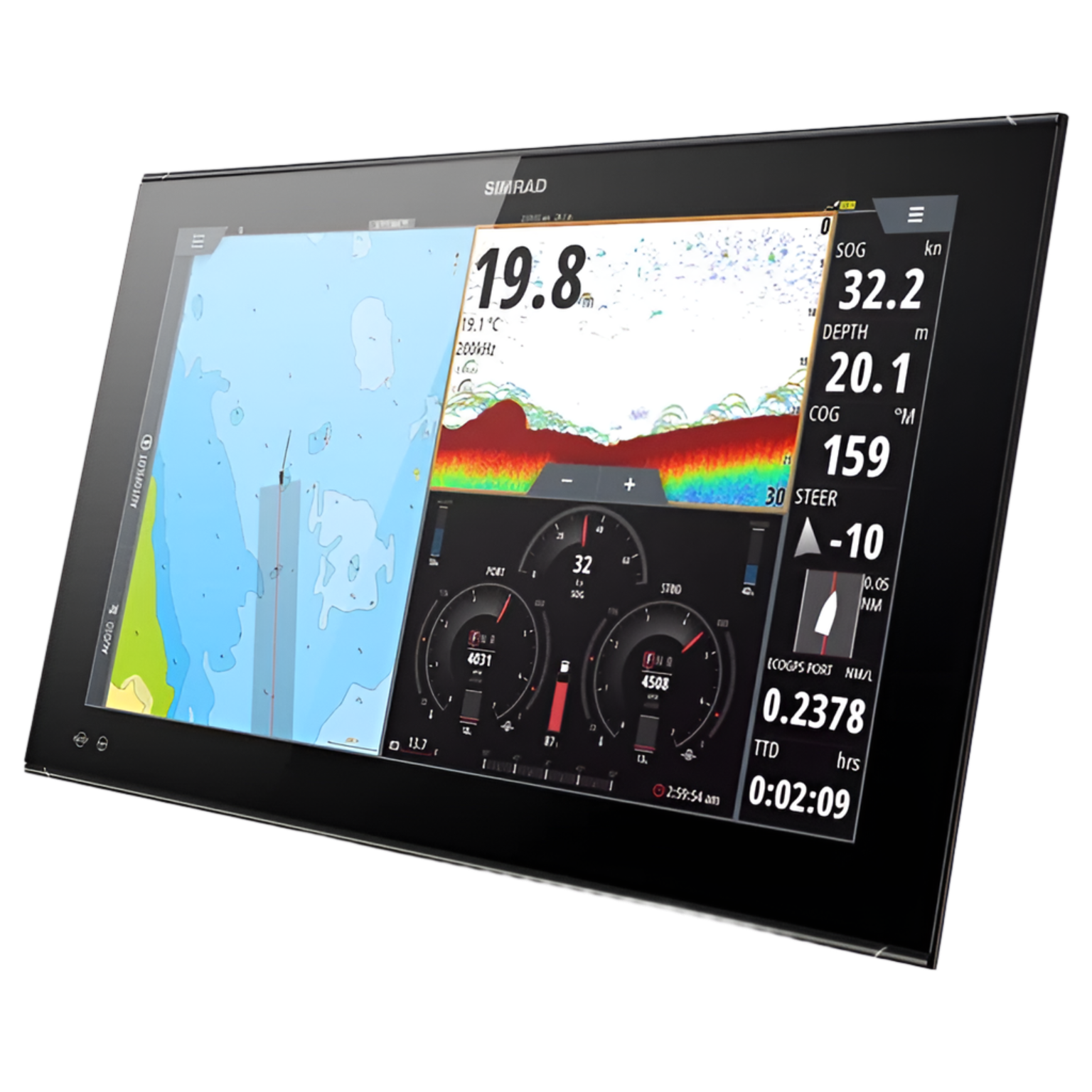

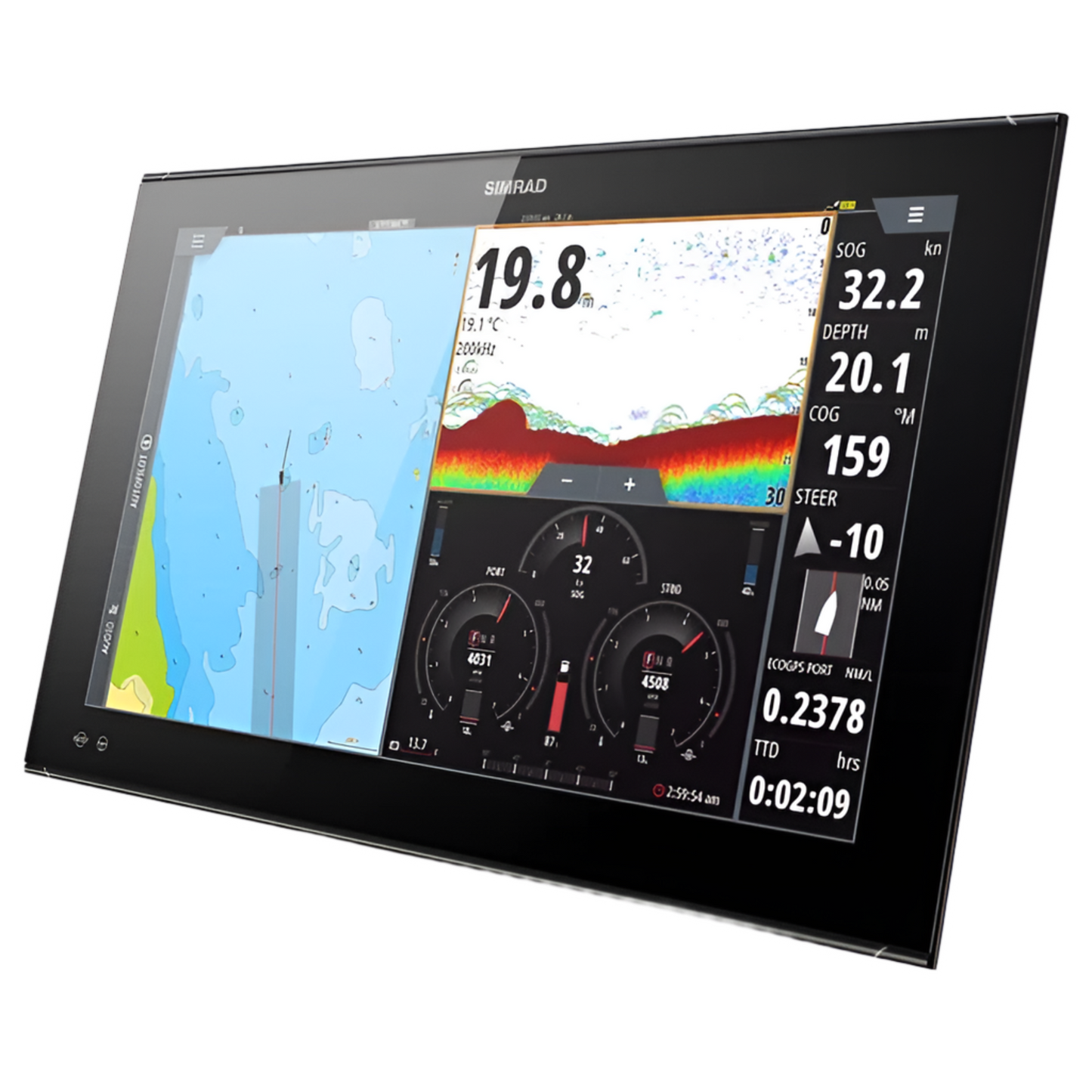

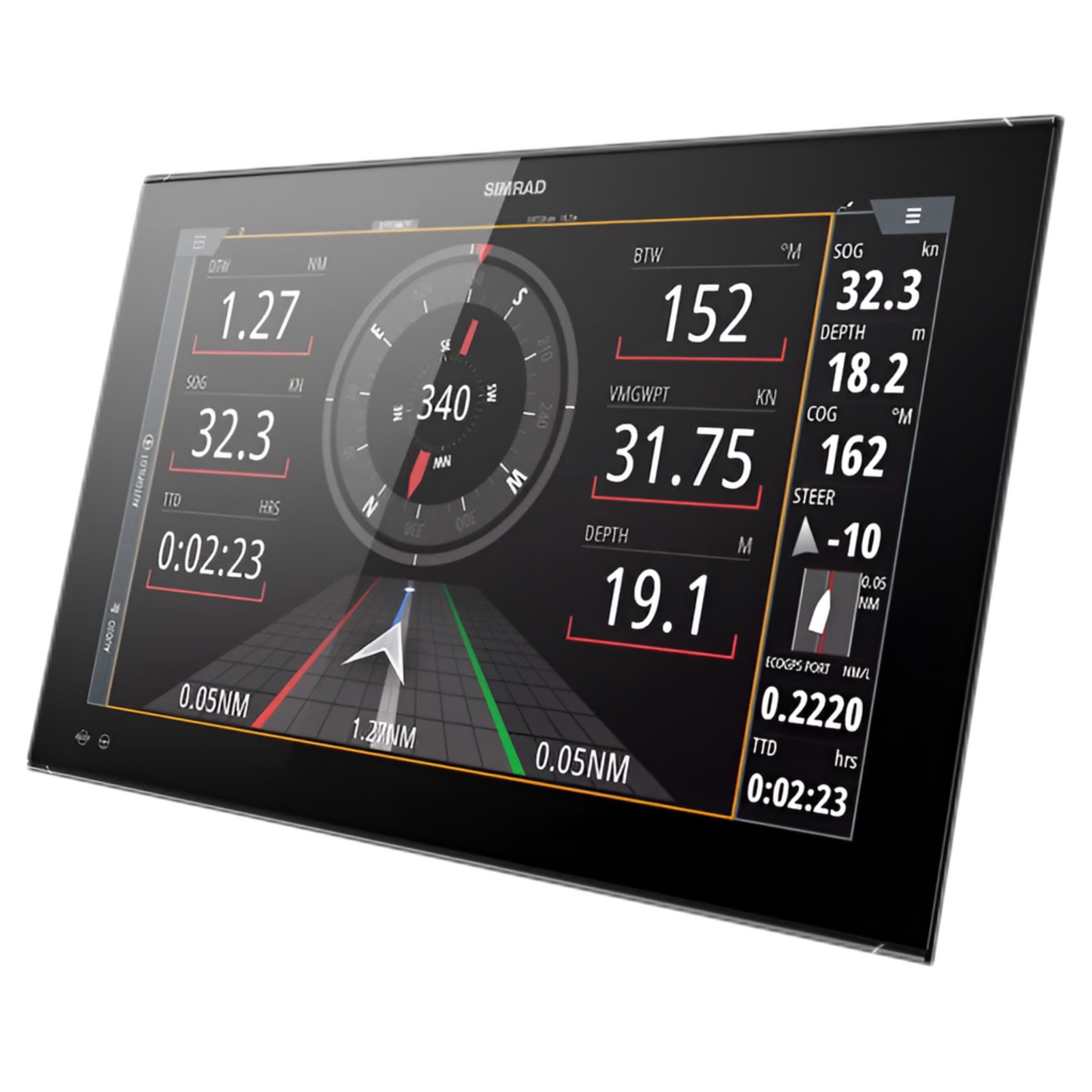

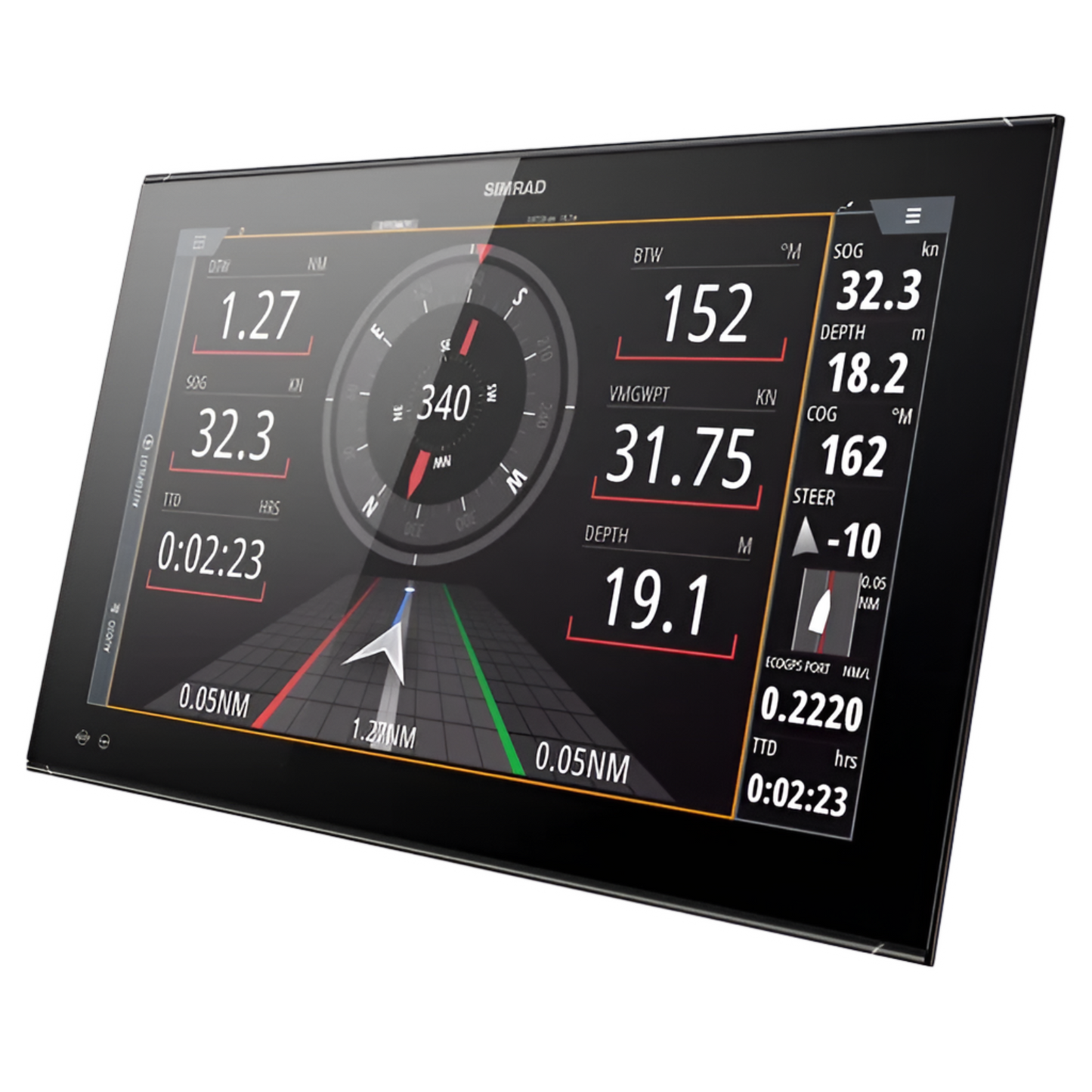

SIMRAD NSO evo3S 24" MFD System Pack

Model: NSO evo3S 24"

Overview

The SIMRAD NSO evo3S 24" is the flagship multifunction display for large, integrated marine systems. With its powerful iMX 8 six-core processor, Full HD touchscreen, and seamless control of radar, sonar, autopilot, engine data, and multimedia, it’s built for high-performance offshore navigation.

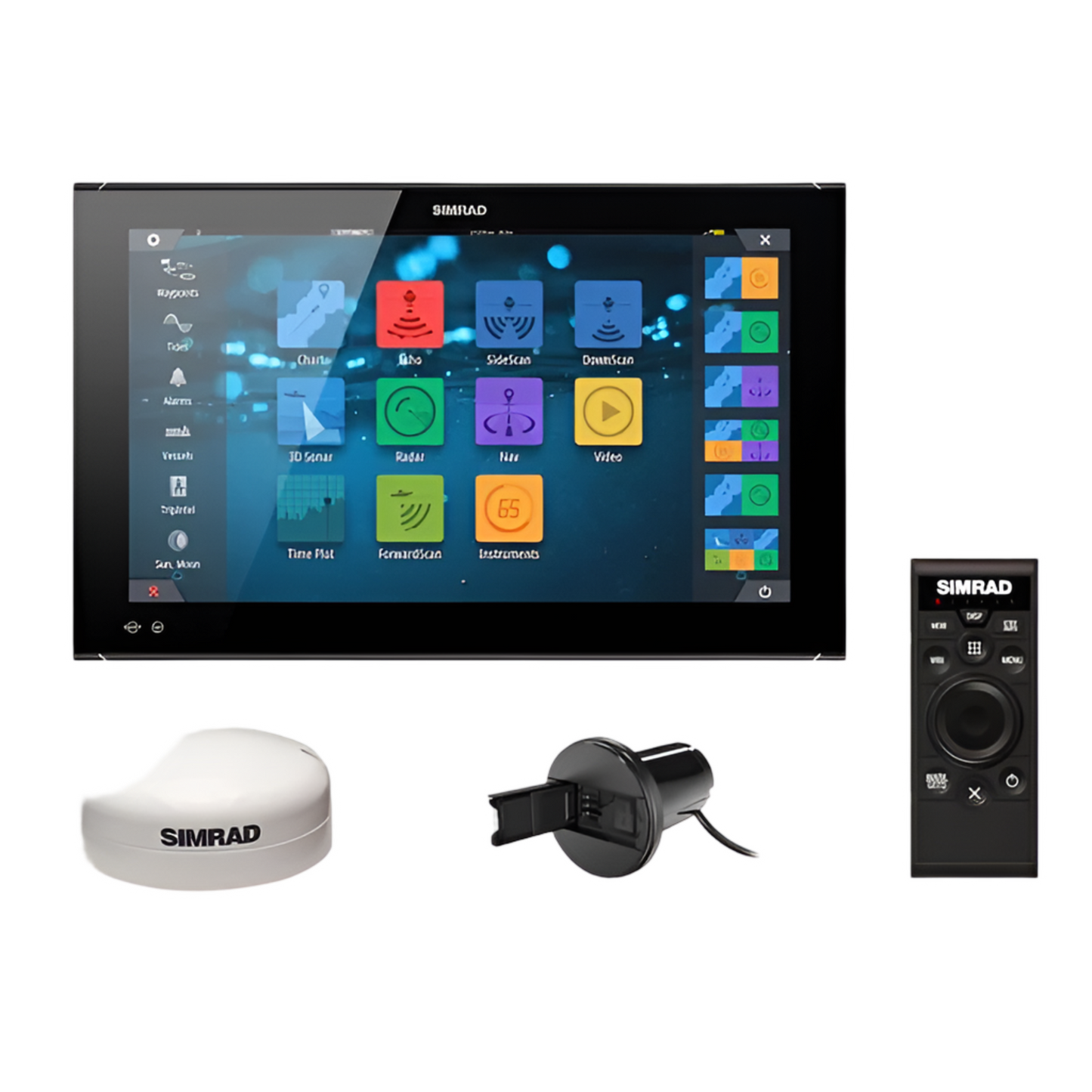

This System Pack includes everything needed to begin a glass helm installation.

Key Features

  • iMX 8 six-core processor – ultra-fast performance and smooth transitions

  • Full HD 24” optically bonded display – ultra-bright and wide viewing angles

  • Multi-touch control of your full Simrad system

  • Low-profile glass helm styling

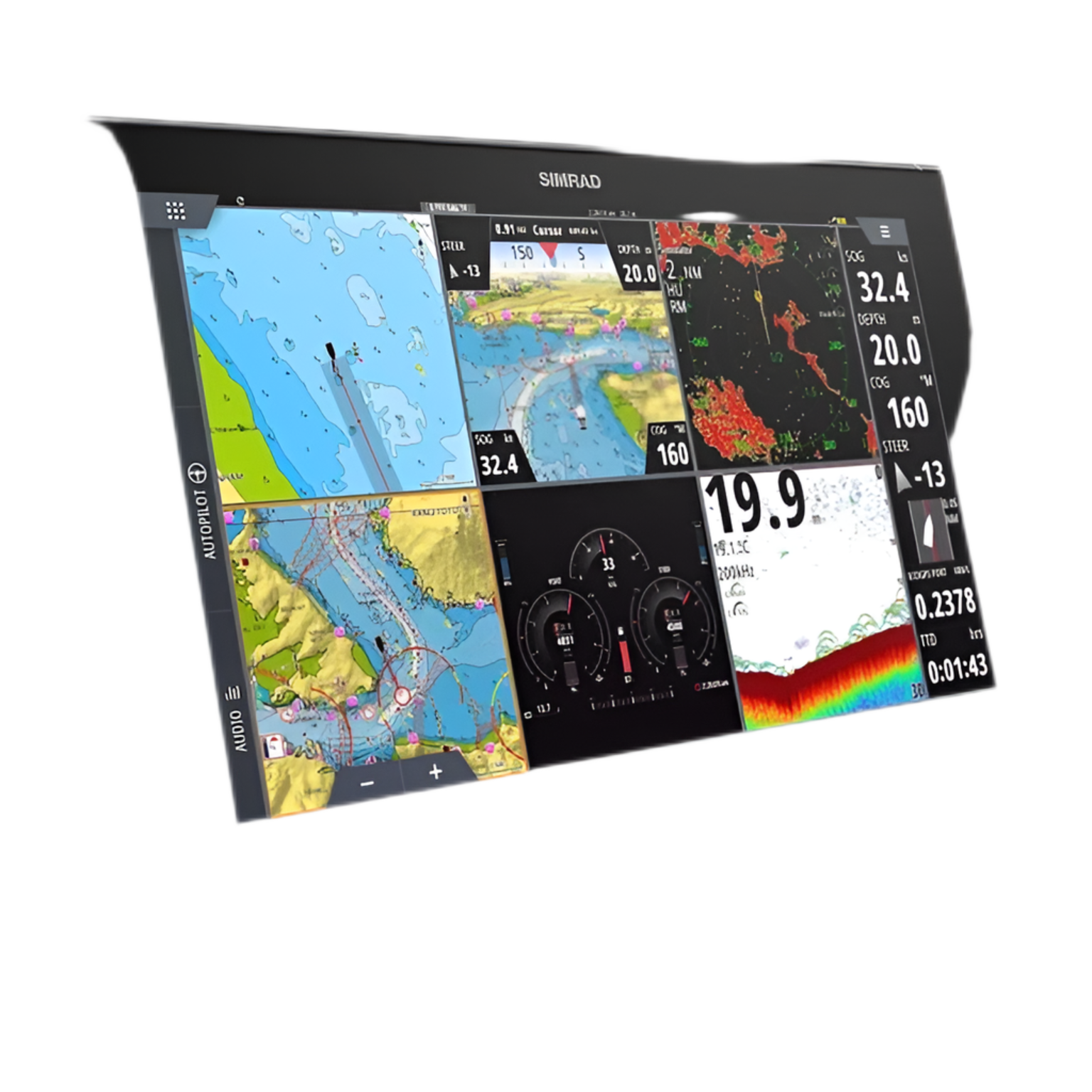

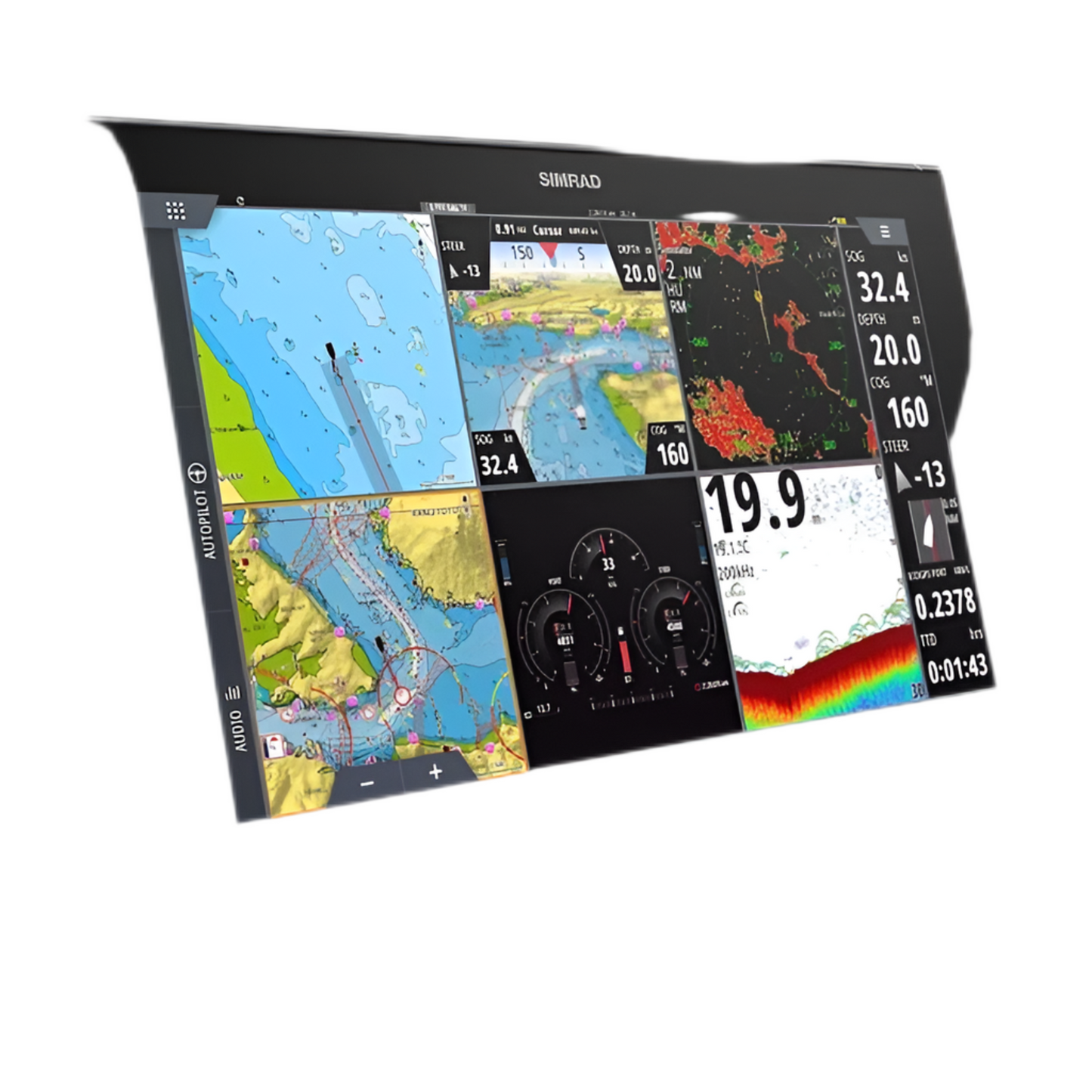

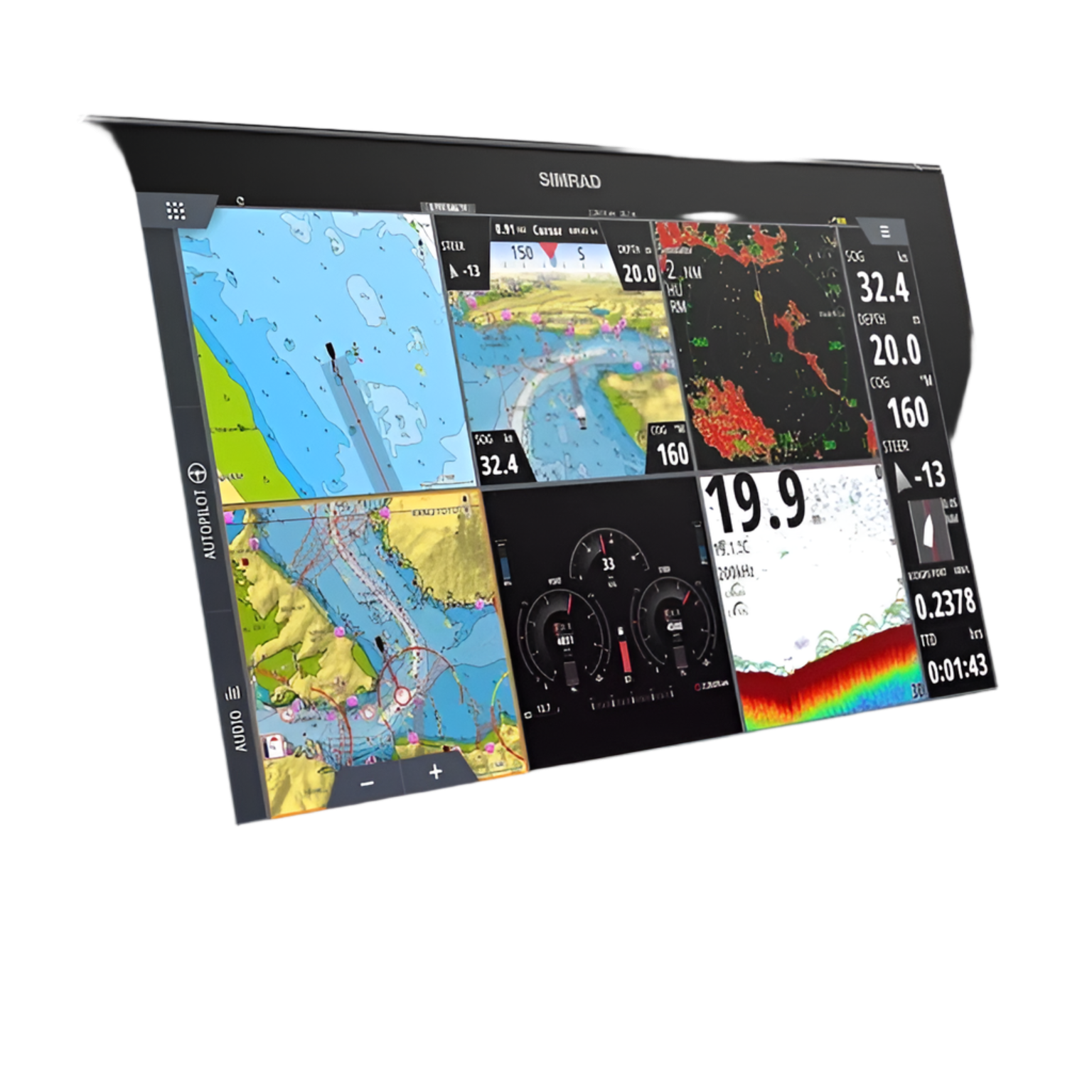

  • Supports up to 6-panel split screen

  • Wireless connectivity with phones/tablets for remote control & software updates

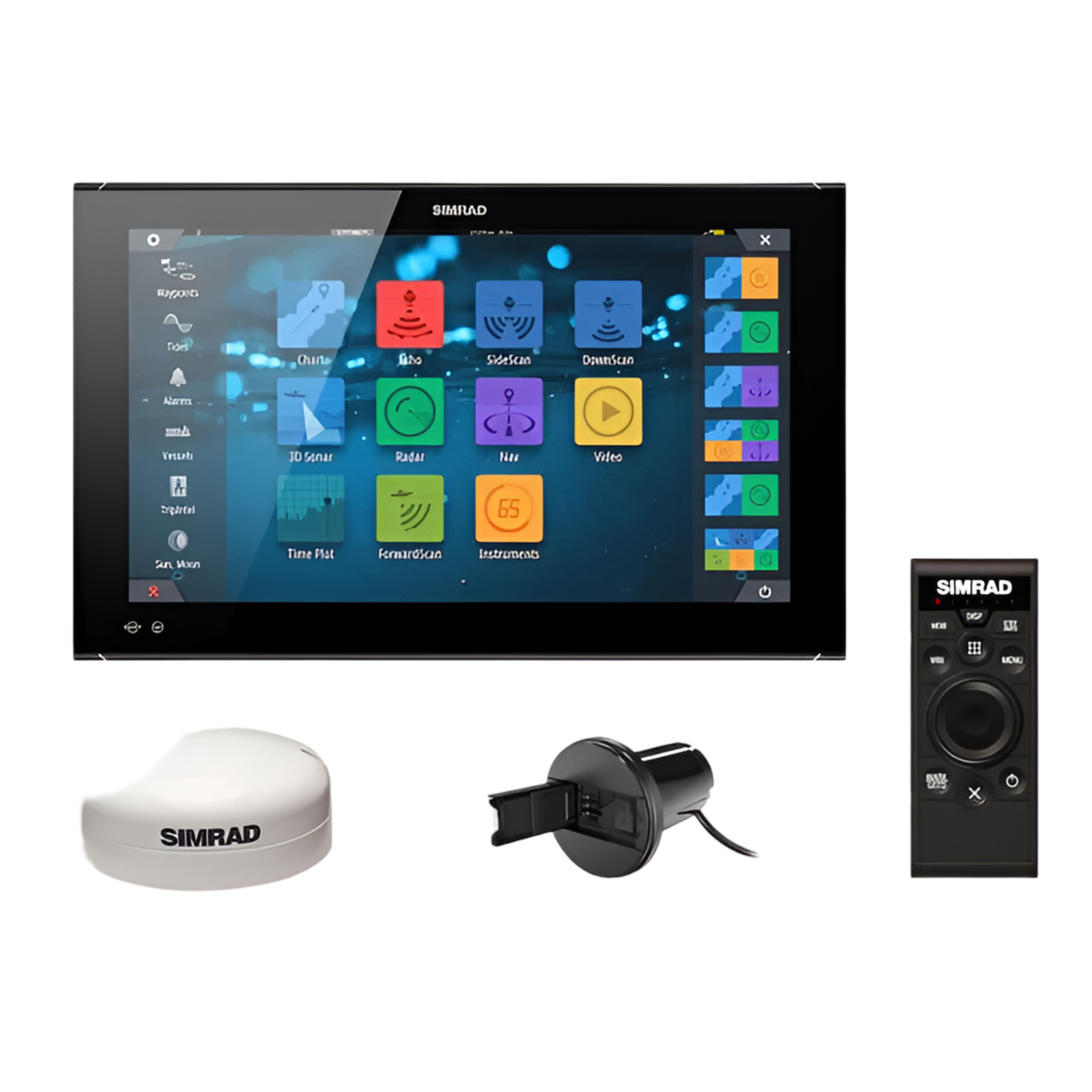

  • Includes OP50 keypad, GPS antenna, and microSD card reader

Display

  • Size: 24" MVA TFT (optically bonded)

  • Resolution: 1920 × 1080 (Full HD)

  • Brightness: 1200 nits

  • Viewing Angle: 80° all directions

  • Control: Multi-touch screen + OP50 keypad

  • Split View: Up to 6 screens at once

Connectivity

  • Ethernet: 3 × RJ45 ports

  • Wi-Fi: Internal 802.11 b/g/n

  • NMEA2000: 1 × Micro-C (LEN 1)

  • NMEA0183: 2 × standard, 2 × high-speed ports

  • J1939: 1 × Micro-C

  • HDMI In: 1 port (1080p, HDCP 1.4)

  • Video In: 2 × composite (BNC)

  • Storage: 1 × microSD slot (up to 32GB or NTFS-formatted larger) + 16GB internal

Electrical & Environmental

  • Voltage Input: 10 – 31.2V DC

  • Max Power Draw: 80W ± 4W

  • Fuse Rating: 10A @ 12V DC

  • Operating Temp: -15°C to +55°C

  • Waterproofing: IPX6 (front only, when correctly panel-mounted)

  • Mounting: Panel or optional bracket (PN: 000-13547-001)

  • Weight: 7.8 kg

  • Dimensions:

    • Without bracket: 625.1 × 386 × 83 mm

    • With bracket: 648.9 × 388.5 × 212.5 mm

Integrated Applications

  • Radar: Broadband, HALO, HD Pulse

  • Sonar: SonarHub, S5100, StructureScan 3D

  • Autopilot: Full control + commissioning

  • AIS: NMEA2000 or 0183

  • Weather: GRIB & SiriusXM (USA only)

  • Charts: C-MAP, Navionics, NV Digital

  • Multimedia: FusionLink, SonicHub2, JL Audio (AU/NZ only)

Autopilot Steering & Maneuvers

  • Modes: Standby, Auto, Nav, No Drift, Follow Up, Non-Follow Up, Wind (Sail)

  • Turn Patterns: U-turn, Spiral, Zig-zag, C-turn, Lazy S, Square-turn, Depth contour tracking

Technical Specs

Download The Spec Sheet
