Simrad

NSO evo3S MFD 16" System Pack

$11,397.49 AUD
$12,990.00 AUD $11,397.49 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
This is a Sample Product Title
Was $200.00 Now $100.00

Warranty Details

Simrad Yachting / Navico warranty please visit: https://www.simrad-yachting.com/en-au/help--support/warranty-information/

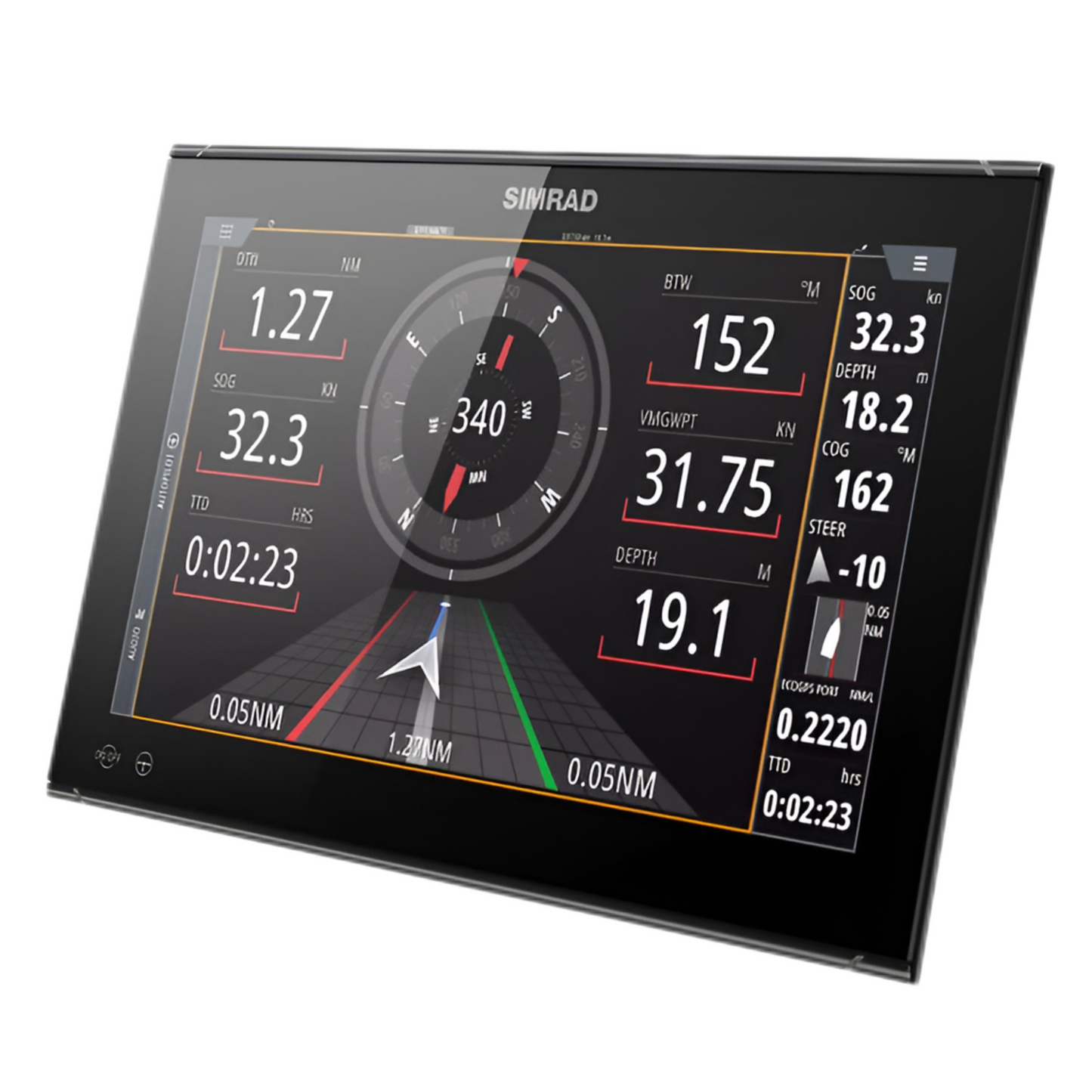

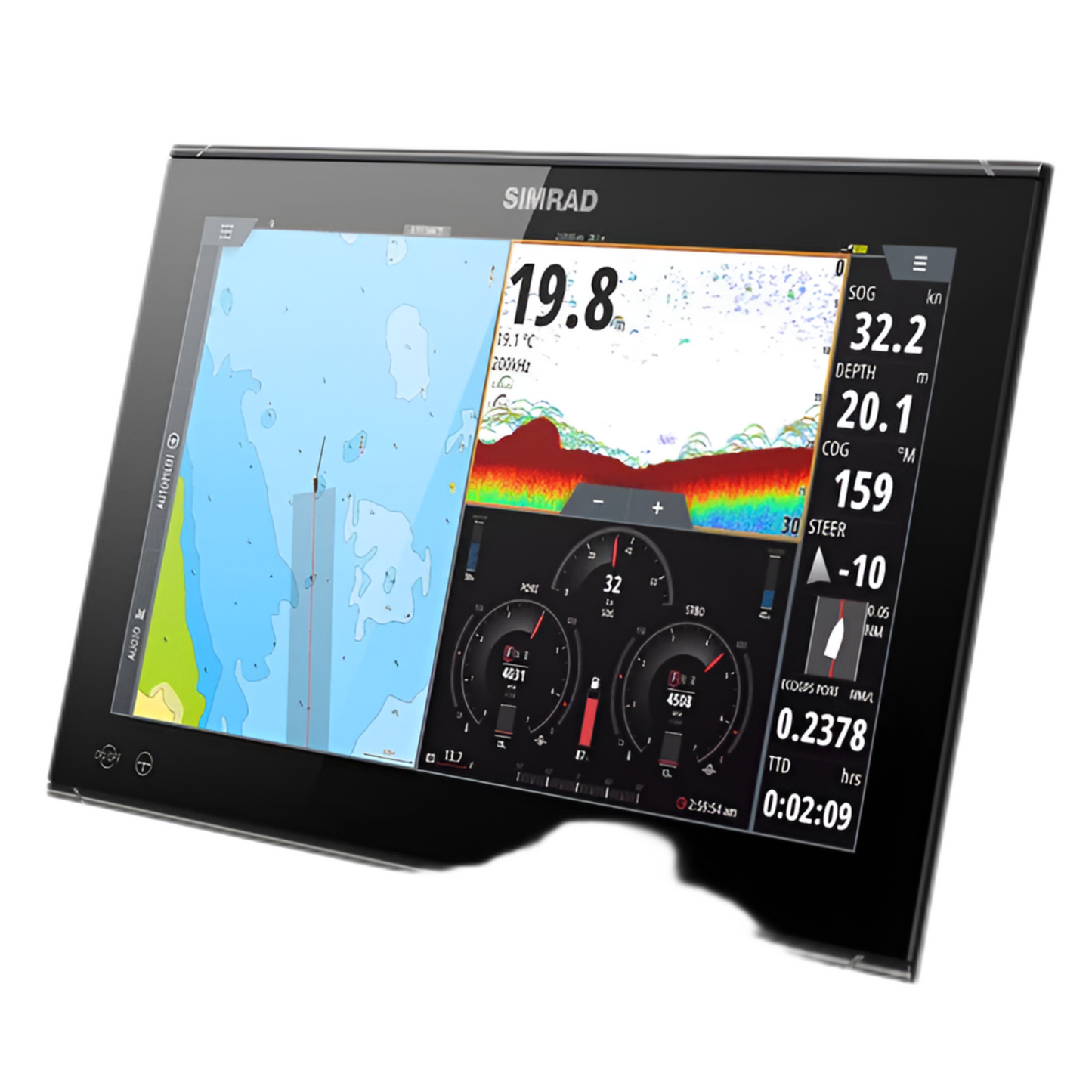

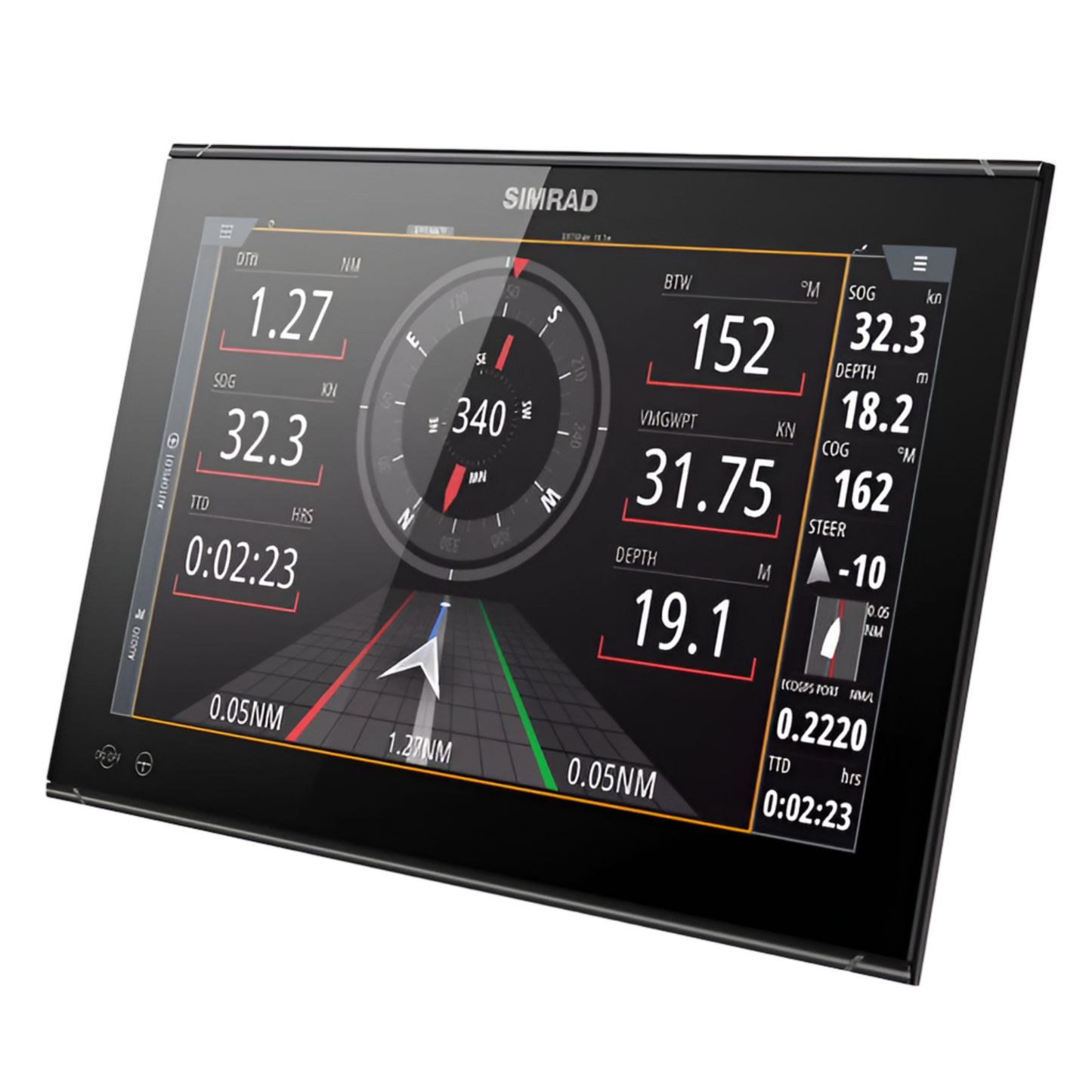

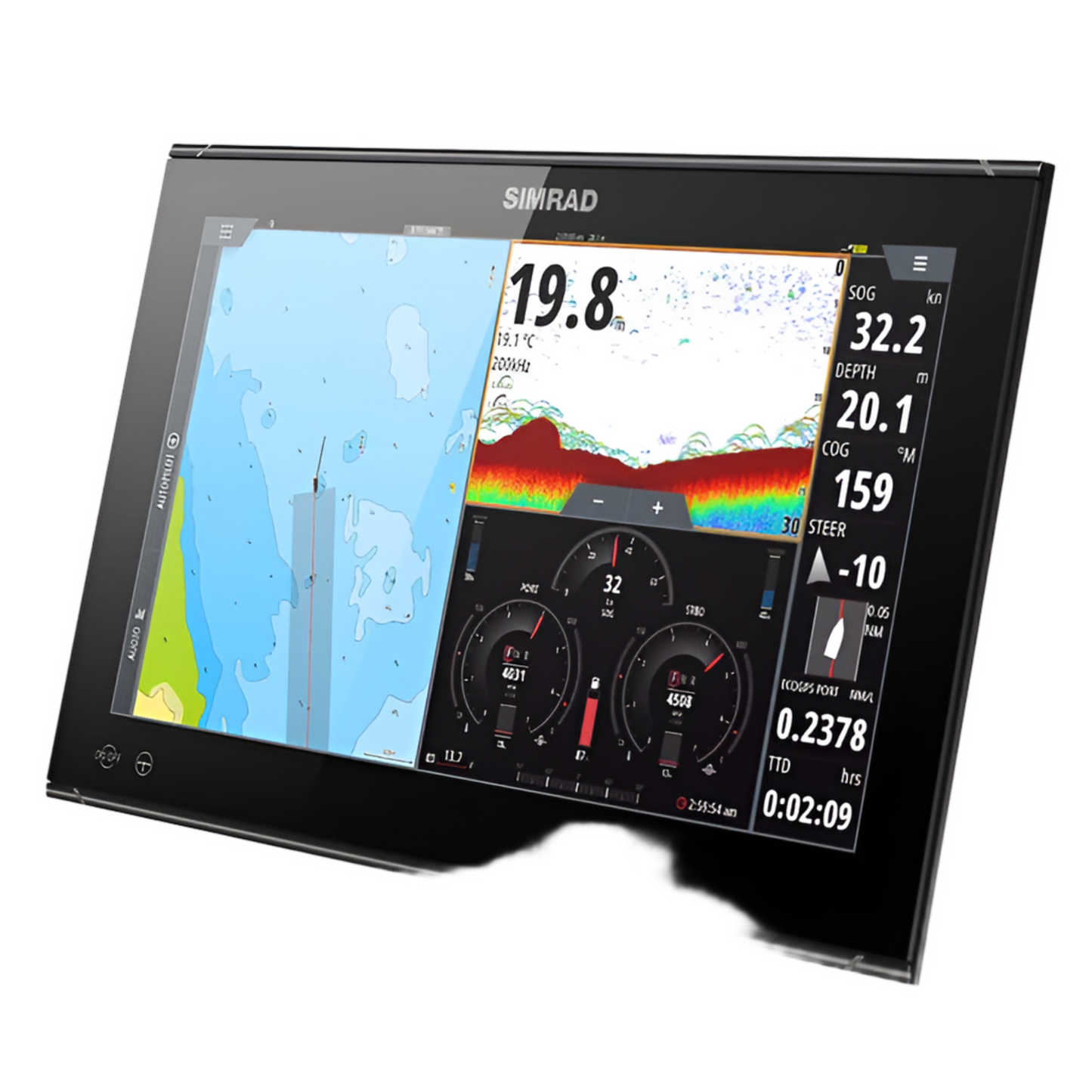

NSO evo3S MFD 16" System Pack

SIMRAD NSO evo3S 16" MFD System Pack

Model: NSO evo3S 16"

Overview

The SIMRAD NSO evo3S 16” delivers powerful all-in-one navigation with a Full HD touchscreen, lightning-fast performance, and seamless system integration. With radar, sonar, autopilot, engine data, AIS, and more all controlled through this single unit, it’s the smart choice for serious skippers and commercial operators alike.

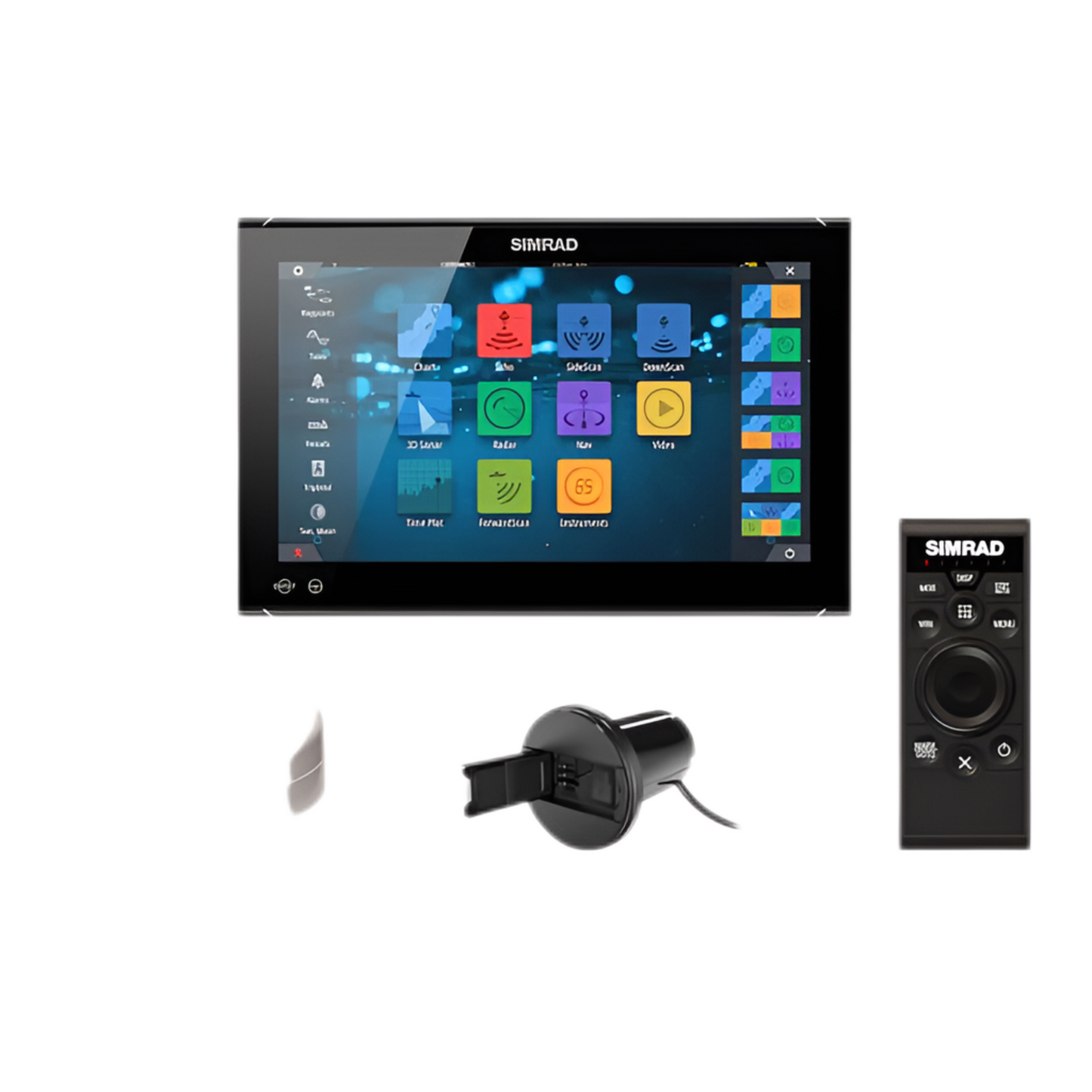

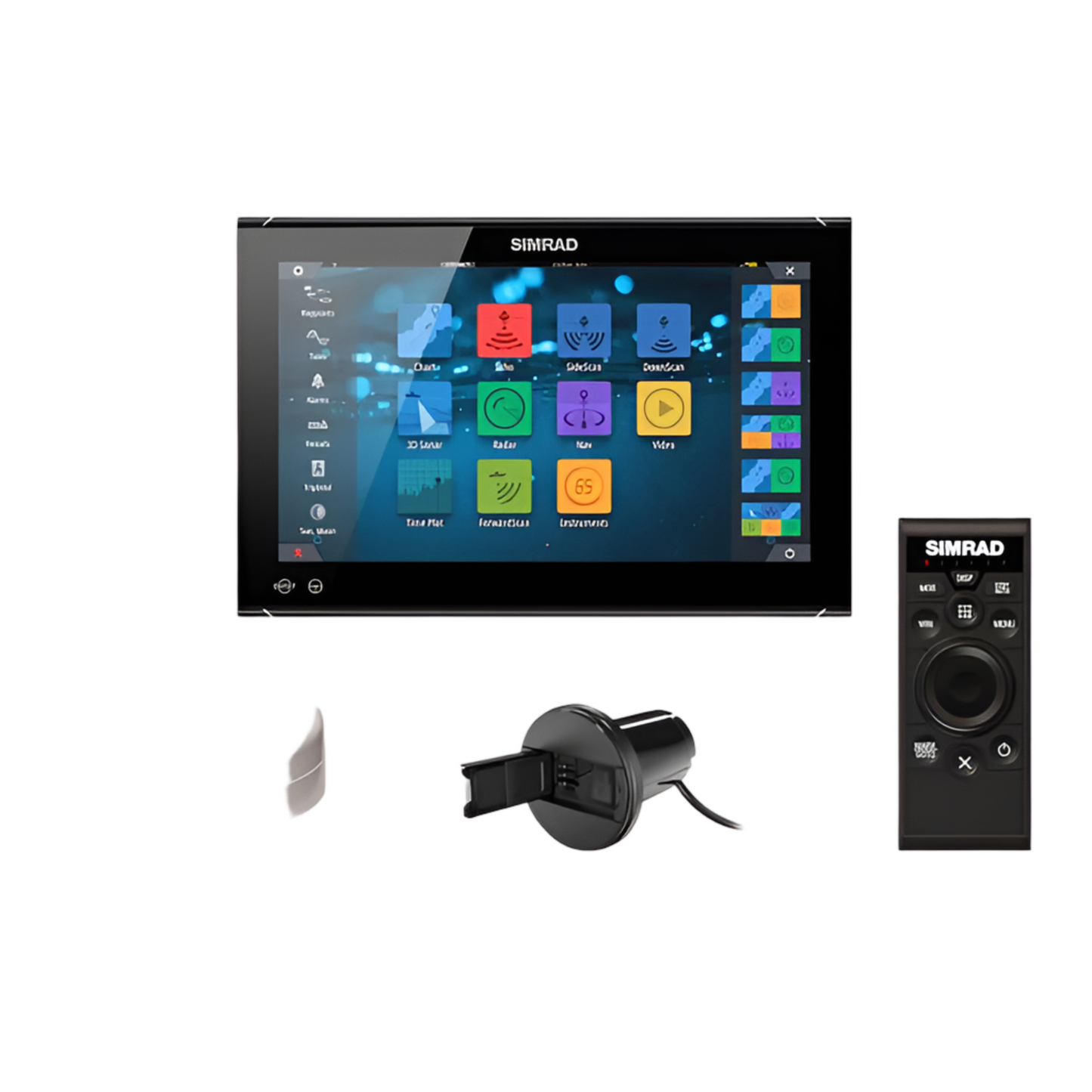

The System Pack provides everything you need for a fully integrated helm system — perfect for both new builds and retrofits.

Key Features

  • iMX 8 six-core processor – blazing fast and smooth performance

  • 16” Full HD optically bonded display – ultra-bright with wide viewing angles

  • Multi-touch control of your full Simrad system

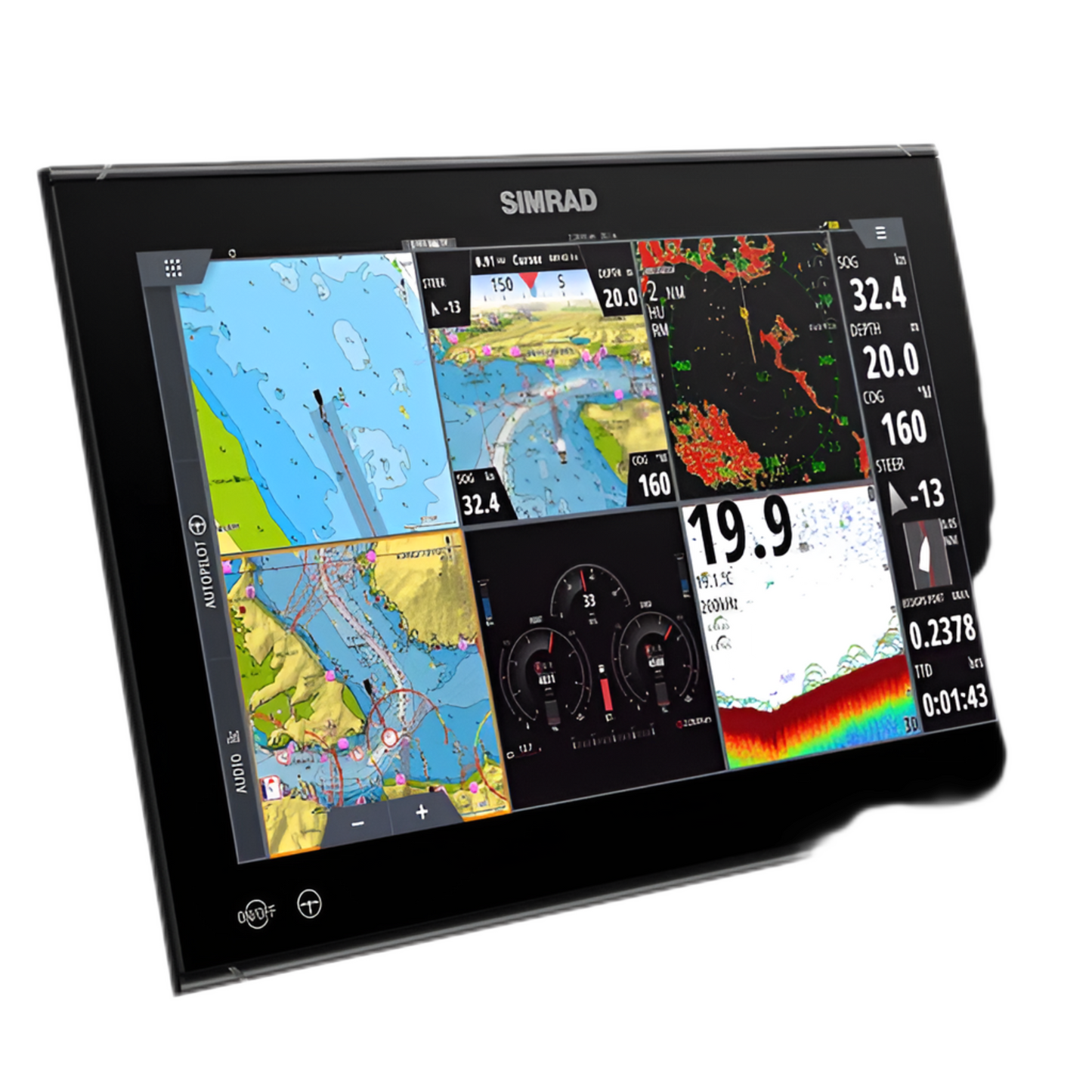

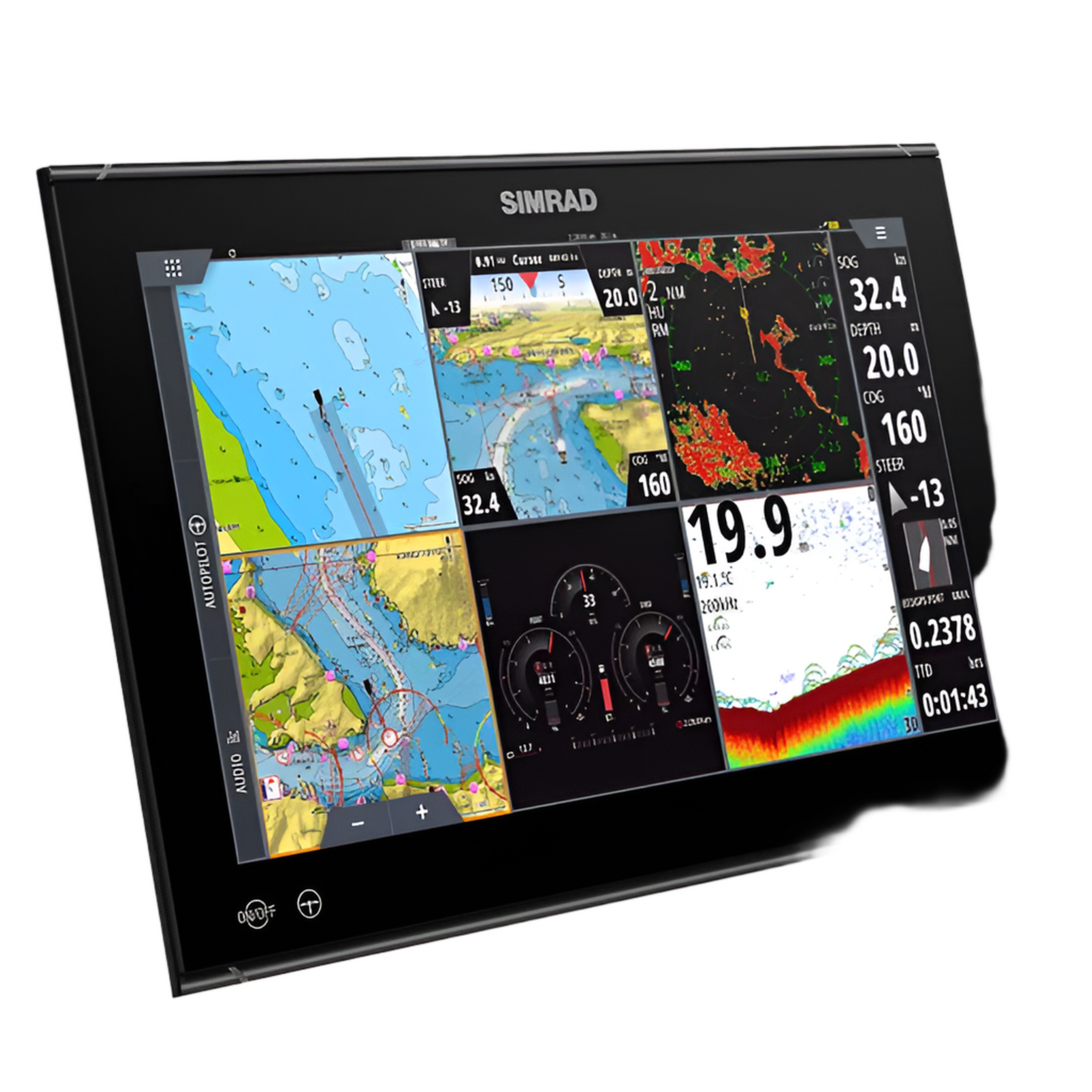

  • Supports up to 6 split-screen panels for complete situational awareness

  • Glass helm styling with low-profile design

  • Built-in Wi-Fi for remote control and updates

  • Includes OP50 keypad, GPS antenna, and microSD card reader

Display

  • Size: 15.6" IPS TFT

  • Resolution: 1920 × 1080 (Full HD)

  • Brightness: 1200 nits

  • Viewing Angle: 80° all directions

  • Control: Multi-touch + OP50 keypad

  • Split View: Up to 6 panels on one screen

Connectivity

  • Ethernet: 3 × RJ45 ports

  • Wi-Fi: Internal 802.11 b/g/n

  • NMEA2000: 1 × Micro-C (LEN 1)

  • NMEA0183: 2 × standard, 2 × high-speed

  • J1939: 1 × Micro-C

  • HDMI In: 1 × 1080p input

  • Video In: 2 × composite (BNC)

  • Storage: 1 × microSD slot (up to 32GB, larger supported via NTFS) + 16GB internal

Electrical & Environmental

  • Voltage Input: 10 – 31.2V DC

  • Max Power Draw: 40W ± 4W

  • Fuse Rating: 6A @ 12V DC

  • Operating Temp: -15°C to +55°C

  • Waterproofing: IPX6 front only (panel-mounted)

  • Mounting: Panel or optional bracket (PN: 000-13547-001)

  • Weight: 3.9 kg

  • Dimensions:

    • Without bracket: 400.1 × 260 × 83 mm

    • With bracket: 474.9 × 307.5 × 222.5 mm

Integrated Features

  • Radar: Compatible with Broadband, HALO, and HD Pulse Radar

  • Sonar: Works with SonarHub, S5100, and StructureScan 3D

  • Autopilot: Full integration and commissioning supported

  • AIS: Input via NMEA2000 or NMEA0183

  • Weather: GRIB files and SiriusXM (USA only)

  • Charts: C-MAP, Navionics, Insight, NV Digital (USA enhanced C-MAP preloaded)

  • Multimedia: Supports FusionLink, SonicHub2, JL Audio (AUS/NZ only)

Autopilot Steering Modes & Patterns

  • Steering Modes: Standby, Auto, Nav, No Drift, Follow Up, Non-Follow Up, Wind, Wind Nav (Sail mode)

  • Turn Patterns: U-turn, Spiral, Zig-zag, Lazy S, Square-turn, C-turn, Depth contour tracking

Technical Specs
