Garmin
GRID™ 20, Vertical
Couldn't load pickup availability
Warranty Details
Warranty Details

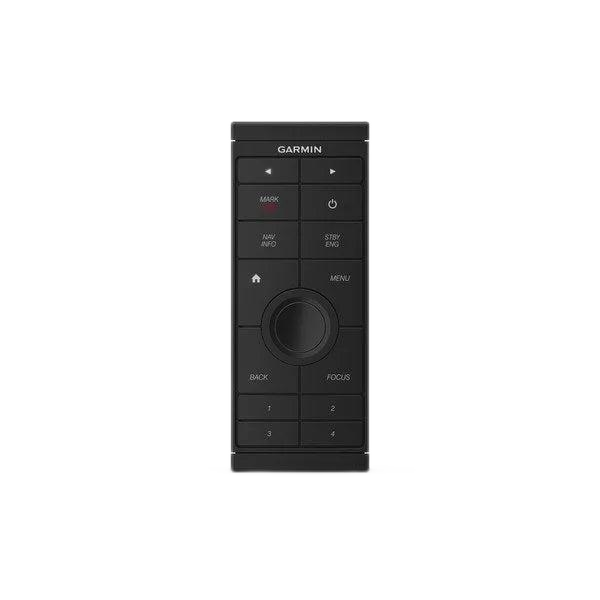

GRID™ 20, Vertical
Sit Back and Take Control
- Provides intuitive, easy-to-use remote access and control of your entire Garmin marine system
- 360-degree, all-in-one joystick with a rotary knob and push-to-select button
- Enables easy chartplotter menu/setting navigation and fine control, even in the worst conditions
- 4 favorite keys can be designated to restore your system to a previously saved configuration
- Allows wired or wireless installation options
The easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. It features a 360-degree joystick with a rotary knob and push-to-select button for easy chartplotter menu/setting navigation and fine control, even in the worst conditions. You can designate 4 favorite keys to restore your system to a previously saved configuration. There are also a variety of hard keys for quick access to important functions, including left and right screen switches, autopilot standby/engage and more. For peace of mind, there’s also a dedicated SOS key. Wired or wireless installation and vertical or horizontal options allow for a plug-and-play solution that is tailored to your marine system. Its small footprint makes it convenient to integrate into a busy helm between displays — or even into the arm of the captain’s chair.
SPECS:
- Dimensions (W×H×D): 5.6” x 2.2” x 2.7” (14.1 x 5.6 x 6.8 cm)
- Weight: 6.3 oz (179 g)
- Temperature range: From 5° to 158°F (from -15° to 70°C)
- Material: Fully gasketed, high-impact plastic
- Water rating: IPX7
- Compass-safe distance: 4.5” (114 mm)
- Power input:
- NMEA 2000
- -or-
- Wired power (with included power cable):
- Input power: 9-32 V dc
- Fuse: 1.0 Amp, Fast Blow
- Maximum power usage at 9 V dc: 1.5 W
- Typical current draw at 12 V dc: 40 mA
- Maximum current draw at 12 V dc: 120 mA
- -or-
- 2x AA battery powered (not included)
IN THE BOX:
- GRID 20
- Mounting hardware
- Power cable
- Documentation
