Garmin

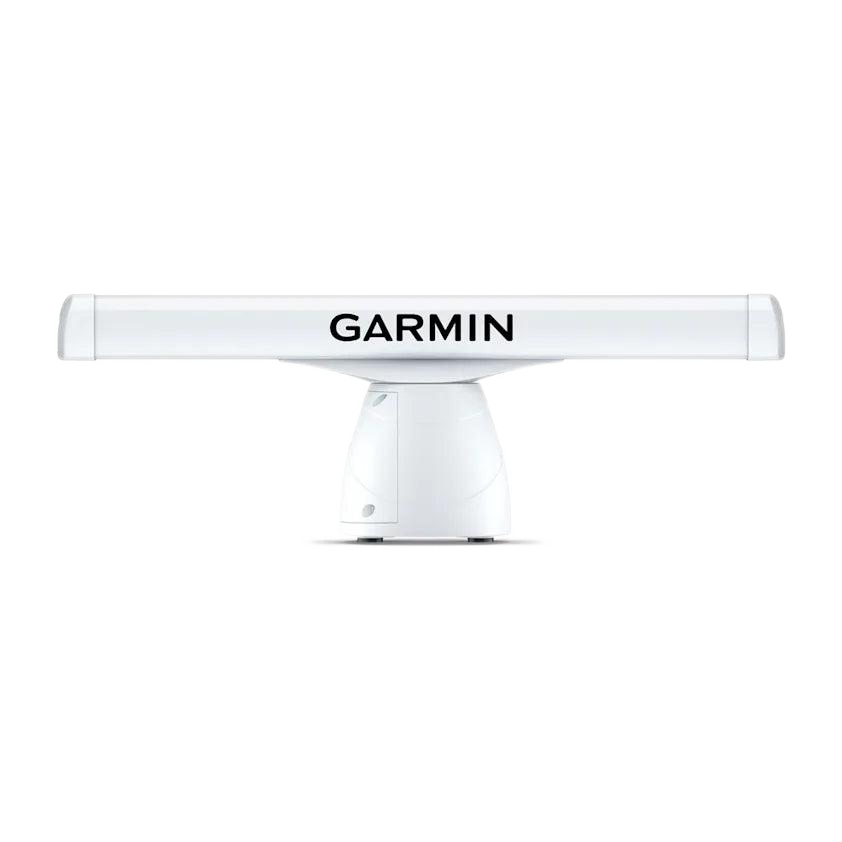

GMR™ 2534 xHD3 Open Array Radar and Pedestal
Couldn't load pickup availability
Warranty Details
Warranty Details

GMR™ 2534 xHD3 Open Array Radar and Pedestal
SCAN WITH THE MAGNETRON POWER OF GARMIN OPEN-ARRAY RADAR
Combining high-definition imaging with the latest Garmin platform technology, these robust 4’ and 6’ open-array radars offer superior weather, obstacle and traffic detection for mariners cruising or fishing offshore.
4-, 12- OR 25kW OUTPUT, UP TO 96-NAUTICAL MILE RANGE
SCAN AVERAGING TECHNOLOGY
IMPROVED TARGET-SIZE PROCESSING
SPLIT-SCREEN DUAL-RANGE DISPLAY
100-KNOT COMMERCIAL GRADE WIND RATING1
QUIET OPEN-ARRAY DRIVE MOTOR
specs:
General |
|
Dimension | 4' array: 1325 x 122 x 170 mm (52.2" x 4.8" x 6.7") 6' array: 1938 x 122 x 170 mm (76.5" x 4.8" x 6.7") Pedestal: 520 x 328 x 314 mm (20.5" x 12.9" x 12.4") |
---|---|
Weight |
4' array and pedestal: 28.4 kg |
Water rating | IPX6 |
Max Wind Load | 100kt |
Antenna Length | 4' array: 48" (122 cm) 6' array: 72" (183 cm) |
Rotation speed (RPM) | 24 and 48 rpm |
Beam width | 4' array: 1.8° horizontal, 23° vertical 6' array: 1.1° horizontal, 23° vertical |
Maximum range | 96 nm |
Minimum range | 20 meters |
Radar type | Open-array |
Electrical Features |
|
Power Input | 10-32 V DC |
---|---|
Power Consumption (standby) | 18 W |
Typical power consumption, transmitting (normal mode) | 70 W |
Transmit power | 25 kW |
Radar Features |
|
Dual range | |
---|---|
Overlay | |
Dual radar support | |
Auto Bird Gain | |
Auto Gain | Dynamic |
MARPA target tracking | yes (requires heading sensor, sold separately) |
Echo Trails | True |
Programmable antenna parking | |
Target size | |
Scan averaging |
in the box:
- GMR xHD3 25 kW open array radar with 4’ or 6’ antenna (depending on model selected)
- Power cable (15 m/49.21 ft)
- Network cable (15 m/49.21 ft)
- Voltage converter
- Mounting hardware kit and template
- Installation instructions
