Garmin

GMR™ 24 xHD3 Radome

$4,271.82 AUD
$4,699.00 AUD $4,271.82 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
This is a Sample Product Title
Was $200.00 Now $100.00

Warranty Details

Via the link, Garmin customers in Australia will find detailed warranty information; information regarding availability of repair facilities and parts including for out of warranty service; certain other information regarding repair or replacement of a Garmin product; and how to contact us in Australia for further information. https://www.garmin.com/en-AU/legal/consumer-warranty-repairs/

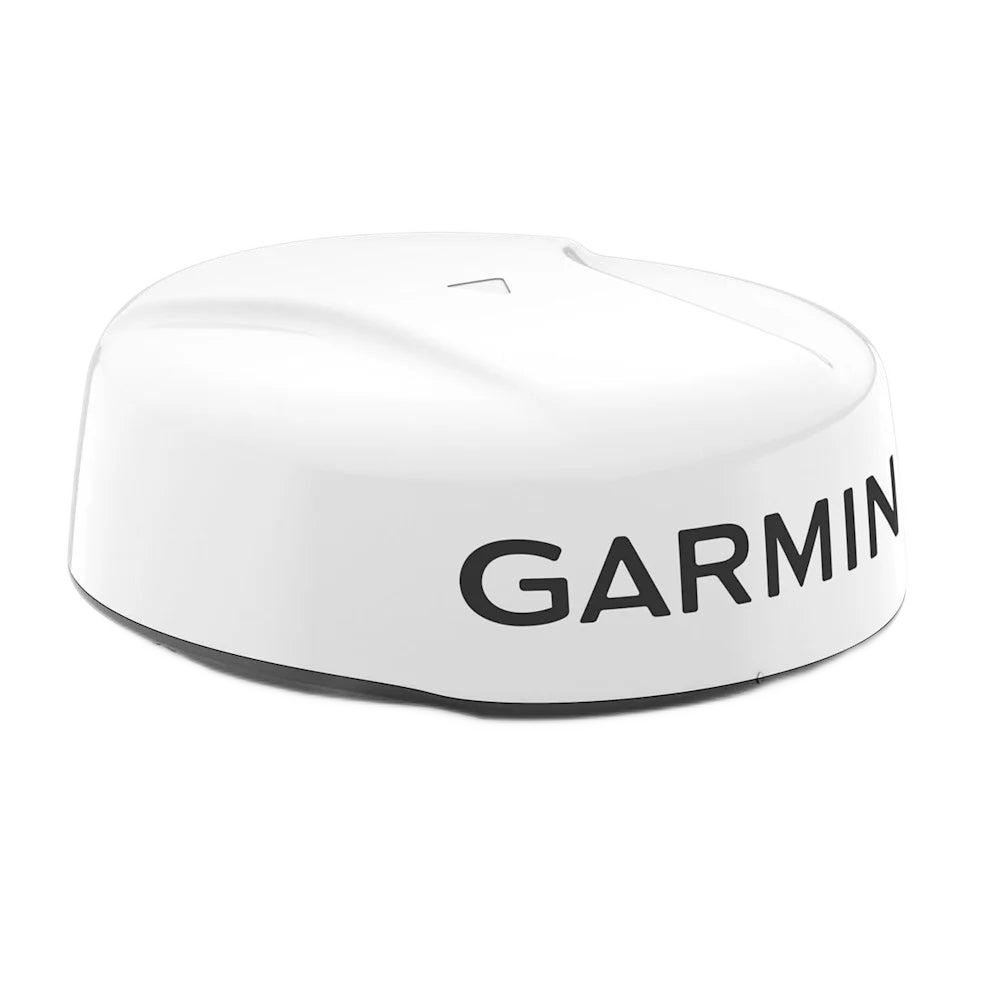

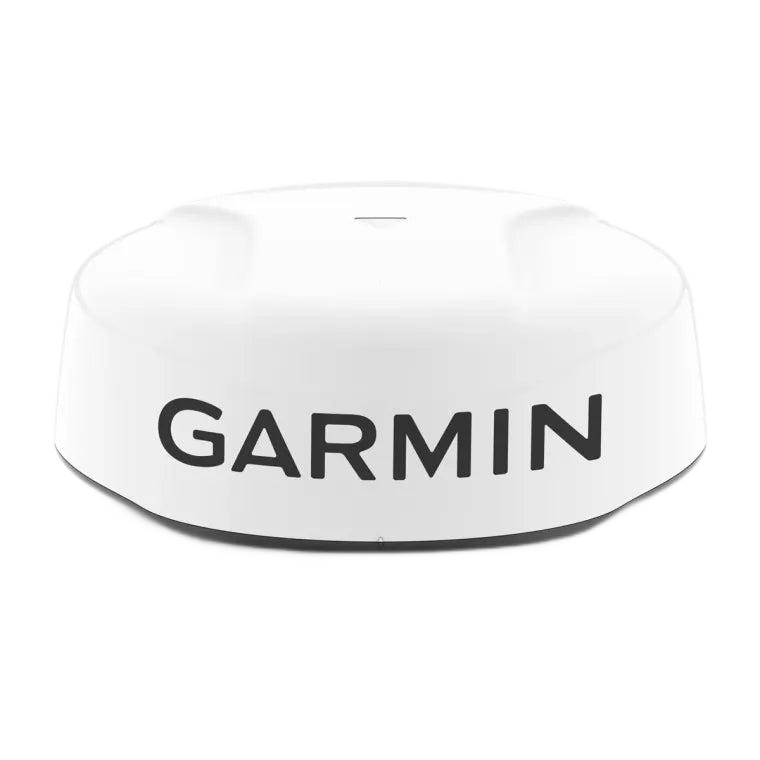

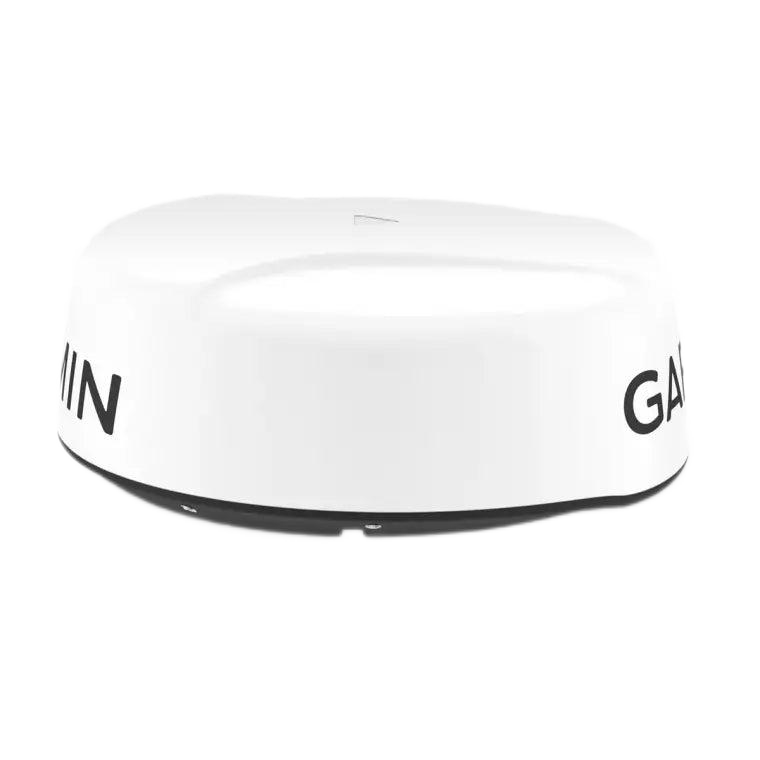

GMR™ 24 xHD3 Radome

GET ROBUST MAGNETRON SCANNING IN A COMPACT GARMIN DOME RADAR

Loaded with advanced features typically found on open arrays, these powerful 18″ and 24″ dome radars offer superior traffic, obstacle and weather detection for peace of mind on the water.

4kW POWER OUTPUT, 48-NAUTICAL MILE MAX RANGE

SCAN AVERAGING TECHNOLOGY

IMPROVED TARGET-SIZE PROCESSING

SPLIT-SCREEN DUAL-RANGE DISPLAY

BIRD DETECTION

QUIET DOME DRIVE MOTOR

TOP FEATURES

NEW SCAN AVERAGING TECHNOLOGY

A first for Garmin magnetron radar, scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.

ANGULAR TARGET-SIZE ADJUSTMENT

Pulse expansion and angular target-size processing techniques optimise on-screen object shapes for better interpretation at all range scales.

FASTER SCANNING ANTENNA

Rotation speeds up to 60 rpm improve the redraw rate for faster target updates.

TRUE ECHO TRAILS

A historical "trail" of boats on the water is displayed on the screen, removing relative motion influence to help you quickly identify moving targets and potential collision threats.

DUAL RANGE WITH OVERLAY

A single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range setting and controls for both close and long range. Overlay either or both ranges on a chart.

DYNAMIC AUTO GAIN

Gain automatically adjusts levels to optimum settings for harbours, near shore and offshore in open waters.

SEE MORE OF WHAT'S OUT THERE

RADAR OVERLAY

See overlaid images on your chartplotter's map screen (with appropriate sensors, sold separately).

HIGH-RESOLUTION RADAR

Pick out targets at a distance, thanks to narrow horizontal beamwidth and high antenna gain.

DUAL-RADAR SUPPORT

This provides redundancy and allows each display unit to pull data from different sources.

DYNAMIC SEA FILTER

Radar gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

AUTO BIRD GAIN

Locate flocks of birds at the water's surface where baitfish are also likely to be found.


MARPA TARGET TRACKING

Track up to 30 targets to help avoid collisions (with appropriate sensors, sold separately).

GUARD ZONE

Set the safety zone, and receive an alarm when an object enters the zone.

RANGE AND BEARING CUES

Variable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land.

Specs:

General
Dimension 18: 20″ x 9.8″ (508 mm x 248 mm)
24: 25.4″ x 9.8″ (64.5 cm x 24.9 cm)
Weight 18: 7.0 kg
24: 8.7 kg
Water rating IPX7
Antenna Length 18: 17″ (43 cm)
24: 23″ (58 cm)
Rotation speed (RPM) Up to 60 rpm, depending on settings
Beam width 18: 5.2° horizontal, 25° vertical
24: 3.7° horizontal, 25° vertical
Maximum range 48 nm
Minimum range 20 metres
Radar type Radome

Electrical features
Power Input 11 - 32 V DC
Power Consumption (standby) 15 W
Typical power consumption, transmitting (normal mode) 40 W
Transmit power 4 kW

Radar Features
DUAL RANGE
Overlay
Dual radar support
Auto Bird Gain
Auto Gain Dynamic
MARPA target tracking Yes (requires heading sensor, sold separately)
Echo Trails True
Target size
Scan averaging


In the box:

  • GMR 18 or 24 dome radar (depending on model selected)
  • Power cable (15 m/49.21 ft)
  • Network cable (15 m/49.21 ft)
  • Mounting hardware kit and template
  • Installation instructions

Technical Specs

Download The Spec Sheet
