Garmin

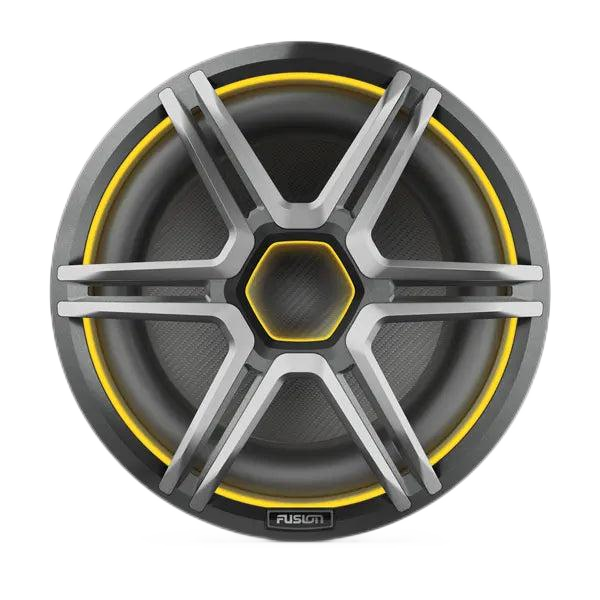

Fusion Apollo™ Subwoofer, 12" LED Marine Subwoofer with Sports Grey Grille

$1,453.64 AUD
$1,599.00 AUD $1,453.64 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
This is a Sample Product Title
Was $200.00 Now $100.00

Warranty Details

Via the link, Garmin customers in Australia will find detailed warranty information; information regarding availability of repair facilities and parts including for out of warranty service; certain other information regarding repair or replacement of a Garmin product; and how to contact us in Australia for further information. https://www.garmin.com/en-AU/legal/consumer-warranty-repairs/

Fusion Apollo™ Subwoofer, 12" LED Marine Subwoofer with Sports Grey Grille

SURRENDER TO THE SOUND

Fusion Apollo subwoofers deliver immersive, high-fidelity bass on the water and are engineered to withstand harsh marine conditions.

CRYSTAL-CLEAR PREMIUM BASS

INCLUDED INTERCHANGEABLE GRILLE IN SPORTS WHITE OR SPORTS GREY STYLE

MATCH THE MOOD WITH DUAL-HUE LED LIGHTING RINGS

AVAILABLE IN 10″ AND 12″ SIZES

RIGOROUSLY TESTED MARINISED DESIGN

WHAT YOU'LL LOVE

PREMIUM BASS

Enjoy immersive bass at higher volumes, thanks to updated motor designs which reduce distortion for a premium sound experience.

LED LIGHTS

Showcase your boat with the dual-hue LED lighting rings that provide a unique look. Choose from a broad range of colors to match the mood or music.

INTERCHANGEABLE GRILLES

Complete your subwoofers with the included sports white or sports grey interchangeable grilles. Purchase the shielded grille for more protection; also available in grey or white.

Made for life on the water

INTEGRATE

FUSION® AUDIO SYSTEM

Control your onboard entertainment system from your compatible smartwatch or with the Fusion Audio smartphone app.

SYSTEM INTEGRATION

Pair your subwoofer with Fusion® head units and amplifiers (sold separately) for the optimal listening experience with minimal distortion.

MARINISED CONNECTORS

Embedded water-resistant marinised connectors simplify the design and make installation easy; they also meet ABYC requirements.

HEAR THE BEAT

Pair your subwoofer with the Fusion® Apollo™ speakers for immersive, high-fidelity audio on the water.



FUNCTIONAL

SUBWOOFER GRILLES

All types of subwoofer grilles provide a distinct look and complement the dual-hue LED lighting.

Easy install

The grilles are simple to install without tools and don’t have screws for a seamless look and finish.

DURABLE

Fusion Apollo subwoofers are the most durable on the market and are built to withstand abuse in harsh marine environments (in accordance with IP67 rating and ISO 12216 standards).




Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.



Specs:



General
Sizes 10″/12″
Color Sports White or Sports Gray
Physical dimensions (Diameter) 10": 10.83" (275 mm)
12": 14.02" (356 mm)
Physical dimensions (Depth) 10″: 175.8 mm (6.92″)
12″: 248.2 mm (9.77″)
Weight 10″: 6.1 kg (13.4 lbs)
12″: 12.63 kg (27.8 lbs)
Water and dust rating IP66/IP67
Speaker type Subwoofer
Continuous power handling (RMS) 10″: 300 W
12″: 700 W
Sensitivity (SPL @ 1 W/1 m) 86 dB
Frequency response (+/- 3 dB) 10″: 30 Hz-2 kHz
12″: 20 Hz-2 kHz
Nominal impedance 4 Ω
Recommended amplifier power (RMS) 10″: 50-300 W
12″: 200-700 W
LED lighting Yes - CRGBW (5 colours)
LED supply voltage 10.8-16 VDC
LED Load Current @ 14.4 VDC (max) 10″: 190 mA per colour
12″: 270 mA per colour
Operating temperature range 0° to 50° C (32° to 122° F)
Cone material Polypropylene cone with rubber surround
Warranty 3 years

Electrical features
Compass safe distance 10″: 410 cm (13.45 ft)
12″: 580 cm (19.03 ft)

Connections
Speaker connections 150 mm (5.9″) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors 6.3 mm (0.25″) positive and 6.3 mm (0.25″) negative)
LED connection 150 mm (5.9″) water-resistant 6-way connector (6-pin, CRGBW and ground)

Mounting Dimensions
Mounting diameter clearance 10″: 223 mm (8.78″)
12″: 301 mm (11.85″)
Mounting depth clearance 10″: 135 mm (5.31″)
12″: 198 mm (7.80″)
Frontal grille protrusion 10″: 45 mm (1.77″ )
12″: 55 mm (2.17″)

In the box:



  • Subwoofer with a sports white or sports grey grille (based on what you select)
  • Audio cable with water-resistant two-way connector
  • LED cable with water-resistant six-way connector
  • Mounting screws
  • Documentation



Technical Specs

Download The Spec Sheet
