ENERGISE YOUR BOATING EXPERIENCE
Enjoy quality audio and multicolour RGB LED lighting to enhance your boating experience with the EL Series speakers from Fusion.
Experience multicolour RGB LED lighting (sports style LED model only) to brighten up your boating experience.
The injection-moulded polypropylene cone provides clean, clear audio reproduction.
The shallow basket design provides increased versatility during installation.

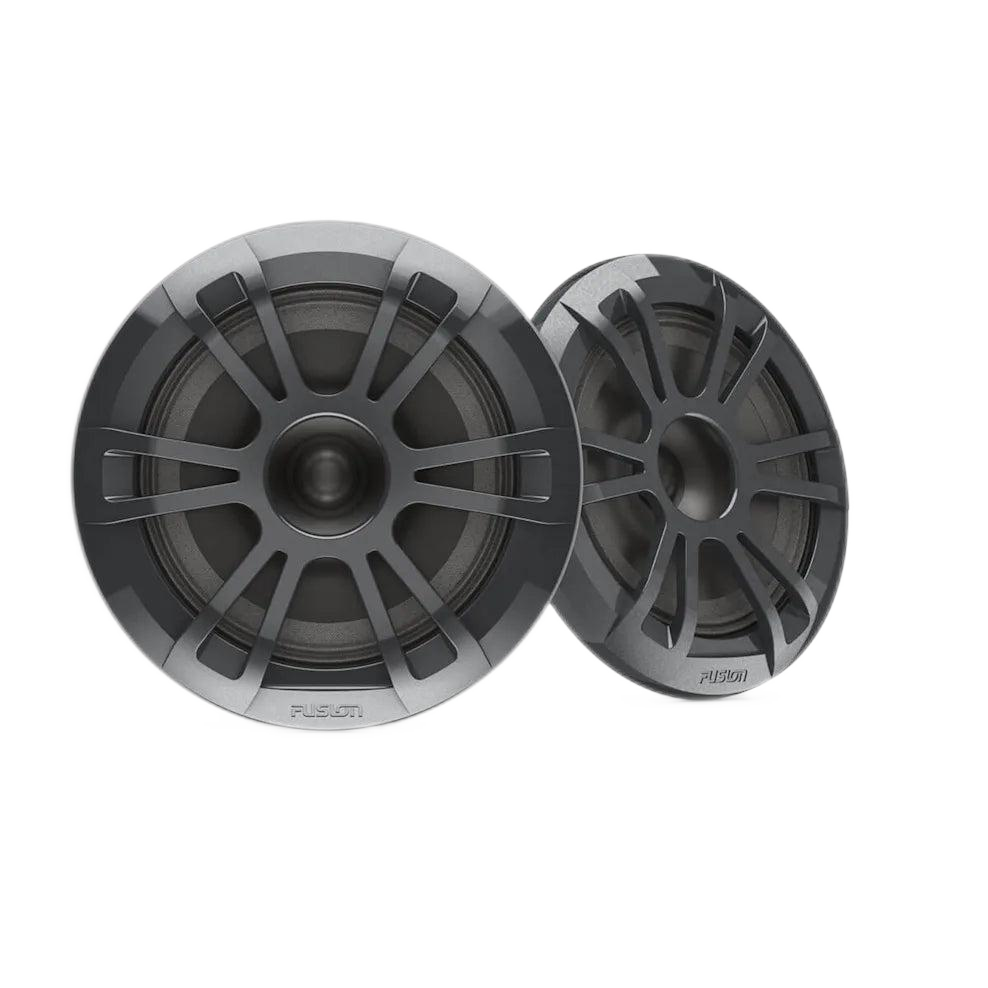

The speakers are available in a 6.5″ design with both classic and sports style grilles.
Salt fog resistant and UV stable design for the harsh marine environment.
DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT
The EL Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the EL Series speakers are designed and built for superior quality and robustness.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The EL Series speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.
Engineered for quality acoustics.
INJECTION-MOULDED POLYPROPYLENE (IMPP) CONE
By using a water-resistant IMPP cone it improves the robustness of the speaker, allowing for clean, clear audio reproduction.
LIGHTWEIGHT VOICE COIL
The lightweight design allows for higher sensitivity, resulting in increased power and efficiency to deliver an enhanced audio experience.
OPEN BASKET CONSTRUCTION
The optimised open back design allows for extended power handling and versatile mounting options with reduced mounting depth.
Experience a variety of colours to match your audio.
MULTICOLOUR RGB LED LIGHTING
The sports-style EL Series speakers with RGB LED lighting provide bright and even LED illumination in a wide range of colours, letting you choose any colour to match the mood and enhance your audio entertainment experience.
CONTROLLING THE RGB LIGHTING
Control the colour (static or dynamic), brightness, light mode and speed by using the optional MS-RGBRC wireless remote control (sold separately).
Specs:
General |
|
| Sizes | 6.5″ |
|---|---|
| Color | Classic white or classic black or sports grey |
| Physical dimensions (Diameter) | 6.5" (Classic): 6.93" x (176 mm) 6.5" (Sports): 6.93" (176 mm) |
| Physical dimensions (Depth) | 6.5" (Classic): 2.26" (57.5 mm) 6.5" (Sports): 2.32" (59 mm) |
| Weight | 0.57 kg (1.26 lbs) |
| Water and dust rating | IP65 |
| Speaker type | Full range |
| Continuous power handling (RMS) | 20 W |
| Sensitivity (SPL @ 1 W/1 m) | 88 dB |
| Frequency response (+/- 3 dB) | 45 Hz-16 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 15-60 W/Channel |
| LED lighting | Yes - RGB (selected Sport models only) |
| LED supply voltage | 10.8-16 VDC (selected Sport models only) |
| LED Load Current @ 14.4 VDC (max) | 150 mA (selected Sport models only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Cone material | Polypropylene cone with cloth surround |
| Warranty | 1 year |
Electrical features |
|
| Compass safe distance | 254 cm (100″) |
|---|---|
Connections |
|
| Speaker connections | Spade Connectors |
|---|---|
| LED connection | Bullet connectors (selected Sport models only) |
Mounting Dimensions |
|
| Mounting diameter clearance | 130 mm (5.12″) |
|---|---|
| Mounting depth clearance | 43 mm (1.69″) |
| Frontal grille protrusion | 19 mm (0.75") |
In the box:
- One pair of speakers (based on what you select)
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″))
- Two 20 ft (6 metre) speaker cables
- Documentation
