Garmin

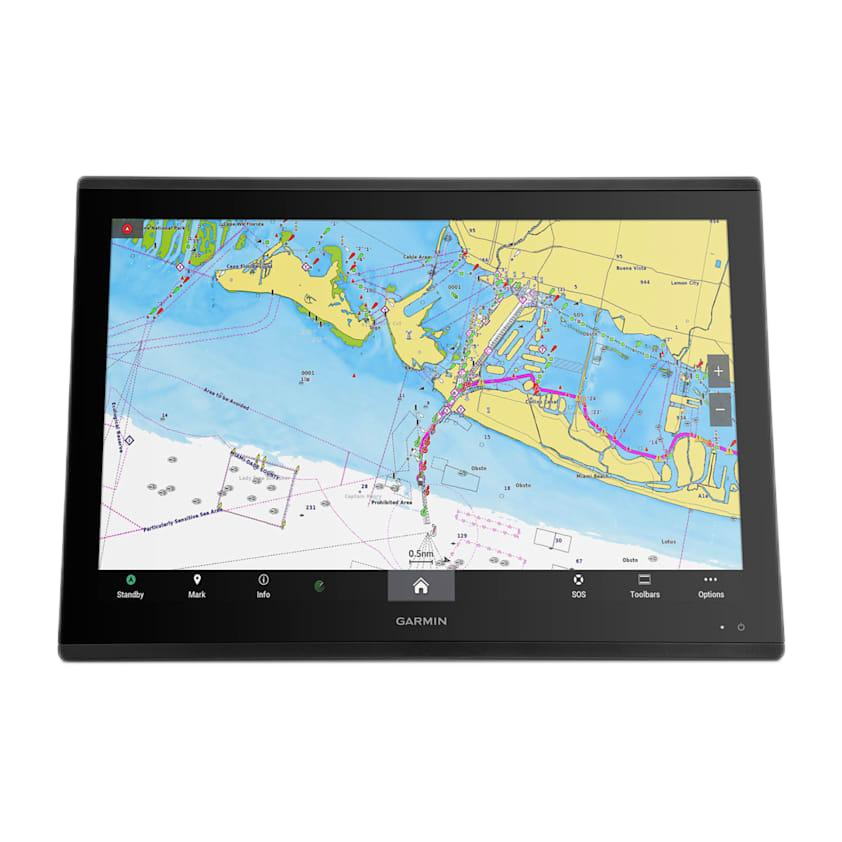

GPSMAP® 8424 MFD

$18,180.91 AUD
$19,999.00 AUD $18,180.91 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
This is a Sample Product Title
Was $200.00 Now $100.00

Warranty Details

Via the link, Garmin customers in Australia will find detailed warranty information; information regarding availability of repair facilities and parts including for out of warranty service; certain other information regarding repair or replacement of a Garmin product; and how to contact us in Australia for further information. https://www.garmin.com/en-AU/legal/consumer-warranty-repairs/

GPSMAP® 8424 MFD

SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

The easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.

Get wider viewing angles and superior clarity on the touchscreen with a full HD in-plane switching (IPS) display.

Navigate confidently with built-in Garmin Navionics+™ inland and coastal mapping1.

Easily build your marine system using the best of network connectivity.

See below and around your boat with built-in sonar capabilities (transducers sold separately).

From ANT® technology to Wi-Fi® networking, there are countless ways to connect to your system.

With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need.

specs:

General
Dimension 22.8" x 16.1" x 2.8" (60.0 cm x 41.0 cm x 7.1 cm)
Weight 18.95 lbs (8.60 kg)
Water rating

IPX7
Touchscreen
Display Type FHD, IPS
Display Size 20.4" x 12.8"; 24.0" diagonal, 51.8 cm x 32.5 cm; 61.0 cm diagonal
Display resolution 1920 x 1200 pixels
Mounting Options Flush or flat

Maps & Memory
Accepts Data Cards

2 SD Cards (with Garmin SD card reader accesory)
Waypoints

5000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100

Sensors
NMEA 2000 Compatible
NMEA 0183 Compatible

Built-in Maps
Tide tables

Optional Map Support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours
Raster chart support

Chartplotter Features
Smart Mode Compatible
AIS
DSC
Supports Fusion-Link™ compatible radios
GSD Black Box Sonar Support
GCV Black Box Sonar Support
ActiveCaptain® compatible

yes
GRID (Garmin Remote Input Device) compatible
Wireless Remote Compatible
Sailing Features
Spoken audio alerts
OneHelm support

Electrical Features
Power Input 10-35 Vdc
Typical current draw at 12 Vdc 6.1A
Maximum current draw at 12 Vdc 7.6A
Maximum power usage at 10 Vdc 87W

Sonar Features
Displays sonar
Traditional sonar (dual frequency/beam) Yes (with external black box, sold separately)
ClearVü yes (with GCV™ black box, sold separately)
SideVü yes (with GCV™ black box, sold separately)
Panoptix™ sonar
LiveScope

Connections
NMEA 2000® ports 1
NMEA 0183 Input (Rx) Ports

4
NMEA 0183 output (Tx) ports 2
Video input ports

1 (BNC composite); 1 HDMI (HDCP compliant)
Video output ports

1 HDMI
J1939 ports 1
Garmin Marine Network Ports

4
USB ports
BLUETOOTH® pairing
ANT+ (Connectivity)
Garmin Wi-Fi network (local connection)



in the box:

  • GPSMAP 8424
  • Trim piece snap covers
  • GPS 24xd NMEA 2000 (with pole mount, flush mount and under deck mount adapters)
  • Protective cover
  • Flush mount hardware
  • Power cable
  • NMEA 2000 2 m backbone/drop cable
  • NMEA 2000 6 m backbone cable
  • NMEA 2000 power cable
  • NMEA 2000 T-connector & terminator kit
  • Documentation

Technical Specs

Download The Spec Sheet
